9" Pioneer Digital Multimedia Receiver with Android Auto and Apple CarPlay - DMHWT3800

9" Pioneer Digital Multimedia Receiver with Android Auto and Apple CarPlay - DMHWT3800

SKU : DMHWT3800 Web ID : DMHWT3800 UPC : 884938499101

$ 1,149 ⁰⁰

^WAS$1,300⁰⁰

$ 191 ⁵⁰/mo

+ taxes/fees
With 6 month financing

Best Price Guarantee

Available Special Order Condition: New

Free Shipping

We now offer financing powered by Apply Now

SAVE $151
Special buy available for quick shipping
Free Shipping

Literature

Ask an Expert

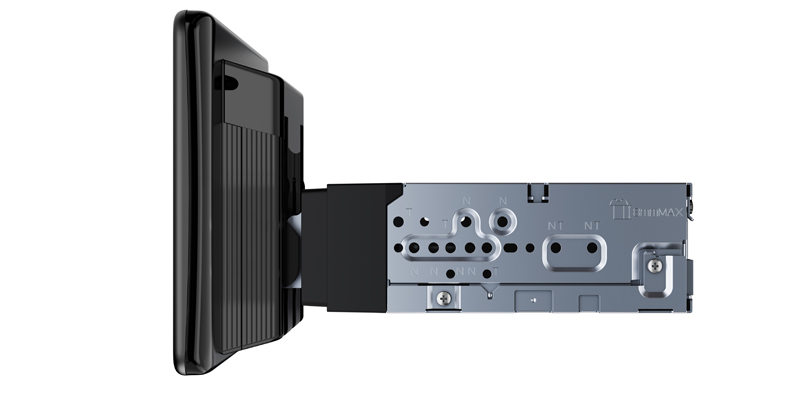

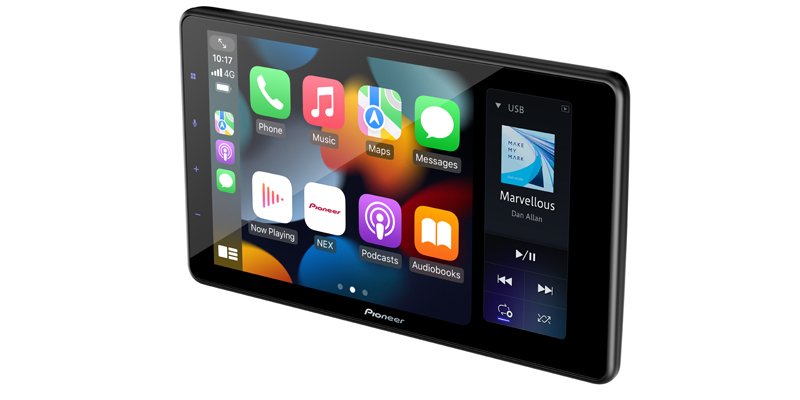

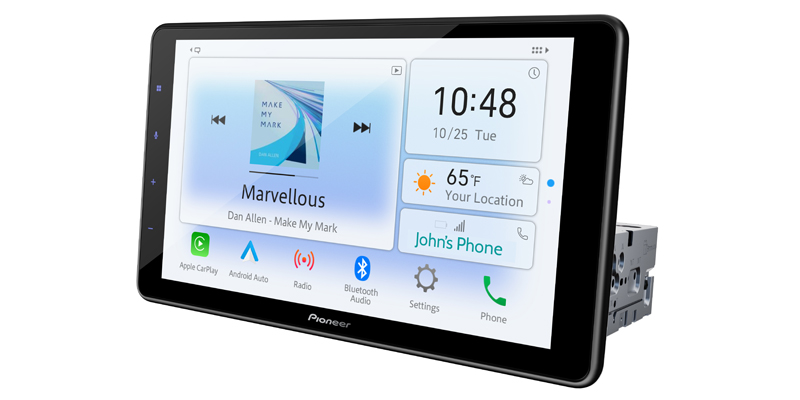

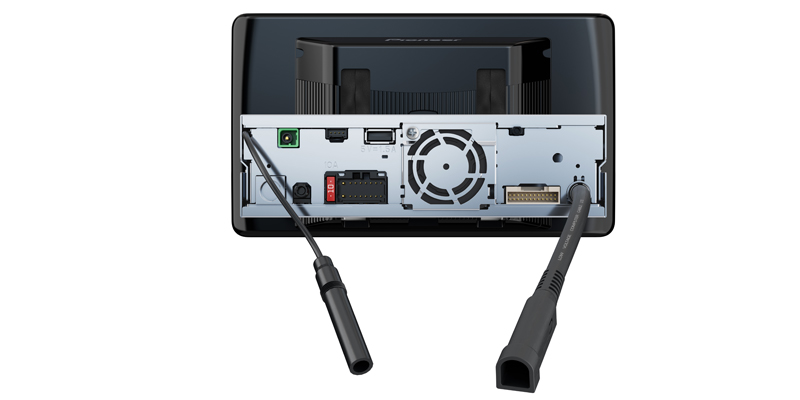

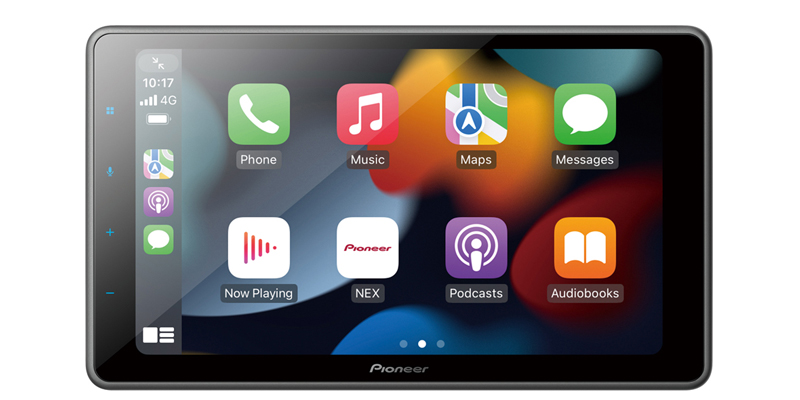

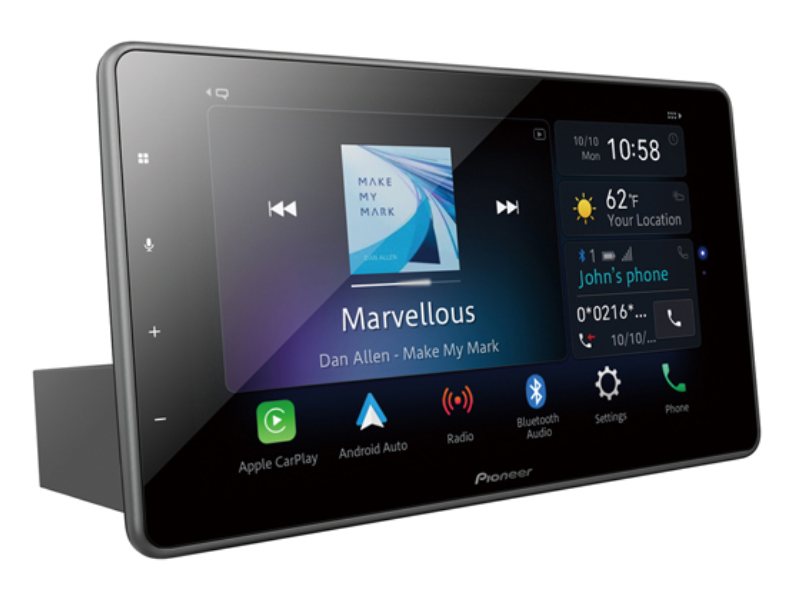

9" Floating Display
1-DIN Chassis
Apple CarPlay (Wireless, Wired)
Android Auto (Wireless, Wired)

What's in the Box

Touchscreen monitor (rear cover pre-installed)
Source unit (10 A fuse)
Wiring harness
Input/output AV wire harness
58” USB-A extension cable
Bluetooth Microphone w/ bracket 10’ cable 2.5 mm connector
GPS Antenna (attached 11.5” cable)
Self-adhesive square
Self-adhesive clips (3)
Monitor bracket
Screen spacer
Front bracket
28 various installation screws
Quick start guide
Warranty information

Standards
CTA-2006	Yes
Performance
Continuous Power Output	22 W x 4-Channel
Load Impedance Allowance	4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output	50 W x 4-ch 4 ohm
RCA Preamp Outputs	6-Channel
RCA Pre-out	2V
RMS Power Output (CTA-2006)	14 W RMS x 4-ch 4 ohm
Display
Back Light	LED
Brightness Control	Yes
Color Customization	5 display colors, 112 key colors
Device (Non-DIN/Modular Unit)	1-DIN, Floating
Dimmer	Automatic with vehicle illumination, Timer Controlled, Manual
Display Off Mode	Yes
Home Screen Customization	Yes
Monitor Mechanism	Adjustable, Floating
Resolution	1024x600
Screen Size/Aspect Ratio	9"/16:9
Touch Screen	Capacitive
NAVIGATION
External GPS Antenna	Yes
Bluetooth
Advanced Audio Distribution Profile (A2DP)	Yes
AVRCP	1.6
Built-in Bluetooth	Yes
Dual Phone Connection	Yes
Hands Free Version	1.6
Hands-Free	Yes
Microphone Included	Included
Phone Registration	5-phone
Secure Simple Pairing (SSP)	Yes
Serial Port Profile (SPP)	Yes
Tuner
Best Station Memory	Yes
Hybrid Radio	Yes
Local Seek tuning	Yes
Presets	18 FM, 6 AM
RDS	Yes
SiriusXM-Ready (Tuner Sold Separately)	Yes
INTEGRATION
Android Auto	Wireless Connection or Wired USB Connection
Apple CarPlay	Wireless Connection or Wired USB Connection
Mobile Operating System	Android / Apple iOS
Music Playback (MTP)	Yes
Pandora	With Apple CarPlay or Android Auto
Pioneer App Compatibility	CarAVAssist Android, CarAVAssist iPhone
Siri Eyes Free (VR) (Internet Required)	iPhone Only
Spotify	With Apple CarPlay or Android Auto
Voice Control	Yes
Weblink	2
WiFi	Tethering, WiFi Hotspot
DIGITAL MEDIA PLAYBACK
Audio Playback via USB	MP3 Audio Playback, WMA Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res), DSD Audio Playback (Hi-Res)
Audio Video Playback via USB	.avi, .mpg/mpeg, .divx, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts
Image Display via USB	BMP, JPEG, PNG
Audio
Advanced Sound Retriever	Mode-1/Mode-2/Off
Bass Boost	Yes
Balance	Yes
Built-in Amplifier	MOSFET 50 W x 4
Crossover Network Mode	HPF/Band Pass/LPF
Crossover Standard Mode	HPF/LPF
Customizable Graphic Equalizer	13 Band
DA Converter	24 Bit
Digital Signal Processor	Built In
Dynamic Bass Enhancer	Off/Low/High
Easy EQ (EEQ) Preset Equalizer	Yes
Fade	Yes
Listening Position Selector	Yes
Loudness	High/Mid/Low/Off
Speaker Output	4-ch
Spectrum Analyzer	Yes
Subwoofer Control	Yes
Time Alignment	Manual
Expandability
OEM Integration	iDatalink® Maestro™ - RR, iDatalink® Maestro™ - RR2, Metra Axxess
OTA Update Compatible	Yes
Parking Assist Lines	Yes
RCA Video Output	Yes
USB Direct Control for iPhone	5s and newer
INPUTS
Input 1	Backup Camera Dedicated
Input 2	AUX (Minijack)
Input 3	A/V or 2nd Camera
General
Detachable Face Security	Fixed
Multi-Language Display	English, French, Spanish Portuguese, Chinese (Simplified)
Music Browser	USB
GPS Antenna	Yes
Remote Control	Optional
Steering Wheel Control Ready (Adapter Sold Separately)	Yes
