Pioneer 6.8" Capacitive Glass Touchscreen Digital Media Receiver - DMH-1770NEX
$ 397 99
WAS $41799
OR $ 66 33/mo
+ taxes/fees With 6 month financing |
Available Condition: New
Free Shipping
We now offer financing powered by
Apply Now
SAVE $20 Literature
- 6.8" WVGA (Capacitive Touch)
- Apple CarPlay Compatible
- Android Auto Compatible
- SiriusXM-Ready
- Built-in Bluetooth

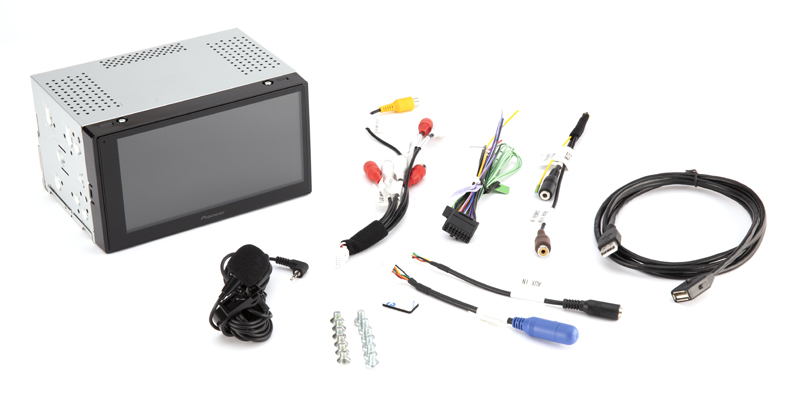

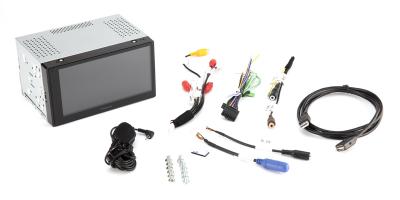

What's in the Box
- Digital Media Receiver
- Wire Harness, Remote Control
- Audio/Video Output Wire Harness
- Camera and Wired Remote Input Wire Harness
- Auxiliary Input Wire Harness
- SiriusXM Wire Harness
- (6) Pan-head ISO screws (M5 x 6mm)
- (6) Counter-sunk ISO screws (M5 x 6mm)
- 1.5m USB Extension Cable Type A(M) to Type A(F)
- Wired Microphone for Bluetooth Hands-Free Phone Calls
- Instruction Manual, Quick Start Guide
- 1 Year Warranty Sheet
| DIGITAL MEDIA PLAYBACK | |
|---|---|
| Image Display via USB | JPEG, PNG, BMP |
| Connectivity | |
| RCA Preouts | 3 (2V) |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Customizable Graphic Equalizer | 13-Band |
| High-Pass Filter | Yes |
| DIGITAL MEDIA PLAYBACK | |
| Audio Video Playback via USB | .3gp, .avi, .flv, .m2ts, .m4v, .mkv, .mov, .mp4, .mpg/mpeg, .mts, .ts, .wmv/.asf |
| Audio Playback via USB | MP3 Audio, WMA Audio, AAC Audio, WAV Audio Playback (Hi-Res), FLAC Audio Playback (Hi-Res) |
| INTEGRATION | |
| Mobile Operating System | Android, Apple iOS |
| Android Auto | Wired USB Connection |
| Apple CarPlay | Wired USB Connection |
| Voice Control | Yes |
| Tuner | |
| RDS | Yes |
| PS (Preset Scan) | Yes |
| Local Seek Tuning | Yes |
| Best Station Memory (BSM) | Yes |
| Presets | 18 FM, 6 AM |
| SiriusXM-Ready (tuner sold separately) | Yes |
| Bluetooth® | |
| Advanced Audio Distribution Profile (A2DP) | Yes |
| Hands-Free Profile (HFP) | Yes |
| Audio/Video Remote Control Profile (AVRCP) | 1.6 |
| Display | |
| Brightness Control | Yes |
| Bluetooth® | |
| Built-in Bluetooth | Yes |
| Display | |
| Dimmer Setting (ON/OFF) | Yes |
| Color Customization | 5 display colors, 112 key colors |
| Display Off Mode | Yes |
| LED Backlight | Yes |
| Touchscreen | Capacitive |
| Resolution | WVGA (800 x 480) |
| Screen Size/Aspect Ratio | 6.8"/16:9 |
| What's in the Box | |
| Included | Digital Media Receiver, Wire Harness, Remote Control, Audio/Video Output Wire Harness, Camera and Wired Remote Input Wire Harness, Auxiliary Input Wire Harness, SiriusXM Wire Harness, (6) Pan-head ISO screws (M5 x 6mm), (6) Counter-sunk ISO screws (M5 x 6mm), 1.5m USB Extension Cable Type A(M) to Type A(F), Wired Microphone for Bluetooth Hands-Free Phone Calls, Instruction Manual, Quick Start Guide, 1 Year Warranty Sheet |
| Connectivity | |
| Subwoofer/Low-Pass Filter | Yes |
| Load Impedence Allowance | 4 to 8 Ohm |
| Expandability | |
| USB | USB Direct Control for iPhone® 5s and newer |
| Parking Assist Line | Yes |
| Audio Video Inputs | |
| Input 1 | Backup Camera Dedicated |
| Input 2 | AUX (Minijack) |
| General | |
| Detachable Face Security | Fixed |
| Remote Control | Included - Wireless |
| Steering Wheel Control Ready (Adapter Sold Separately) | Yes |
| Multi-Language Display | English, Chinese (Simplified), French, Spanish, Portuguese |
| Warranty (must be purchased from an Authorized Pioneer Dealer) | 1 Year |
| 2006 CEA Compliant | Yes |
