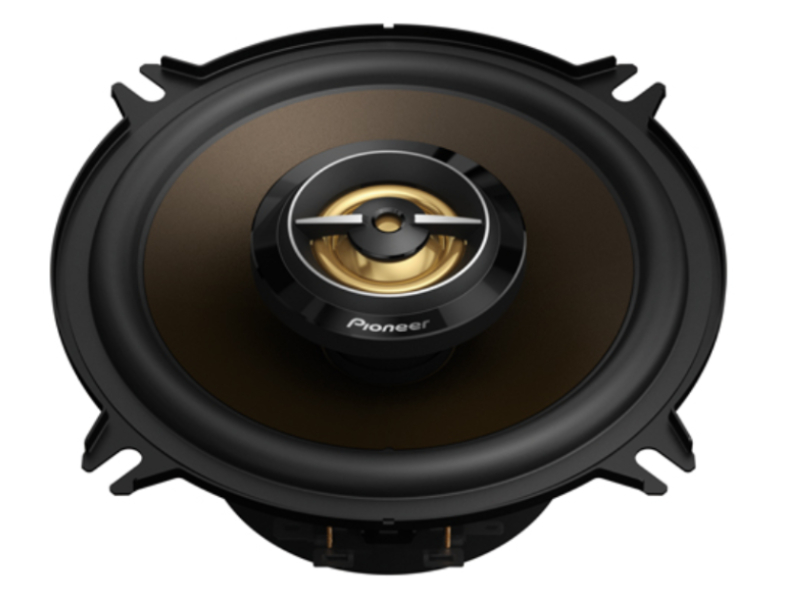

Pioneer 5.25 Inch 2-way 320 W Max Power Coaxial Speakers - TS-A523FH
$ 138 99
WAS $14999
OR $ 23 17/mo
+ taxes/fees With 6 month financing |
Available Special Order Condition: New
Free Shipping
We now offer financing powered by
Apply Now
SAVE $11 Literature
- 320 Watts Max Power (55 Watts Nominal)
- 20mm Polyetherimide (PEI) hard dome tweeter
- 39 Hz to 49 kHz Frequency Range

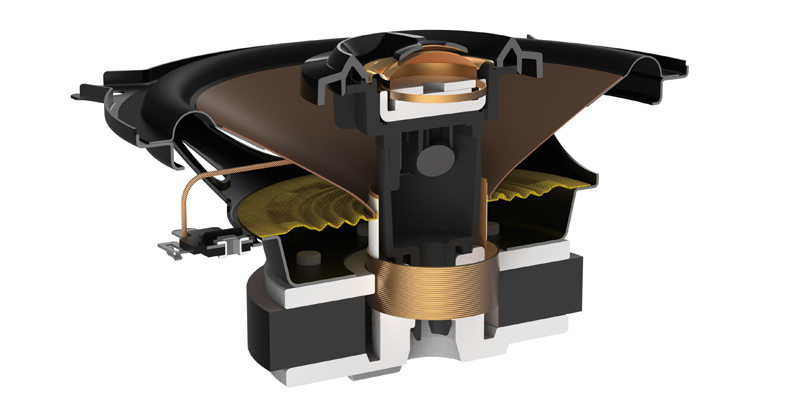

- 5" Aramid fiber reinforced Injection Molded Polypropylene (IMPP) cone construction
- Pioneer patented P.F.S.S. (Progressive Flex Suspension System) (U.S. Patent 20,120,106,777)
What's in the Box
- Two 5 1/4" 2-way coaxial speakers

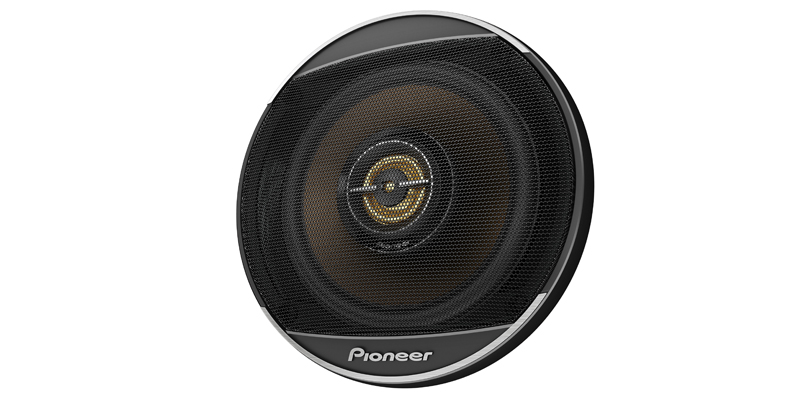

- Two protective Grilles
- Two 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
- Eight 3/4" Screws
- Warranty information
| System | |
|---|---|
| System Type | Coaxial 2-way |
| Sound Pressure Level (Sensitivity) | 88 dB (+- 1.5dB) |
| Frequency Range | 39 Hz to 49 kHz |
| Continuous Power Handling (RMS) | 55 Watts |
| Maximum Peak Power Handling | 320 Watts |
| Nominal Impedance | 4 ohms |
| Woofer | |
| Diameter | 5-1/4” |
| Cone Material | Aramid fiber reinforced IMPP |
| Surround Material | Elastic Polymer |
| Basket Material | Iron Plate Press |
| Magnet Material | Ferrite |
| Magnet Weight | 7.41 oz |
| Voice Coil Bobbin | Glass Imide |
| Voice Coil wire | Copper |
| Mounting Depth | 2-1/8" (Shallow basket) |
| Tweeter | |
| Type | Component Polyetherimide (PEI) hard dome tweeter |
| Diameter | 20 mm |
| Diaphragm Material | Film (PEI) |
| Magnet Material | Neodymium |
| Magnet Weight | 0.17 |
| Warranty | |
| Warranty (must be purchased from a Authorized Pioneer Dealer) | 1 year |
