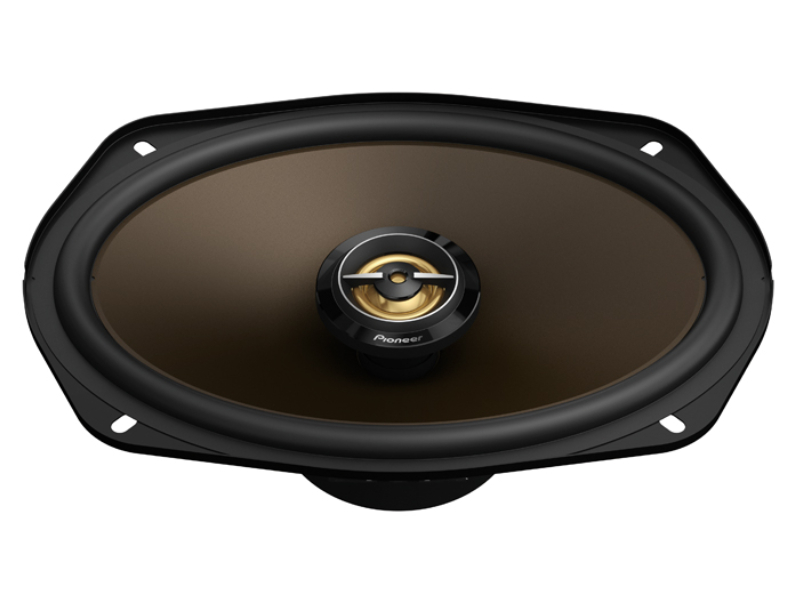

Pioneer 6" x 9" 2-way 460 W Max Power Coaxial Speakers - TS-A693FH
$ 119 00
WAS $16999
OR $ 19 83/mo
+ taxes/fees With 6 month financing |
Available Condition: New
Free Shipping
We now offer financing powered by
Apply Now
SAVE $50 Literature
- 460 Watts Max Power (95 Watts Nominal)
- 18mm Polyetherimide (PEI) hard dome tweeter
- 29 Hz to 49k Hz Frequency Range
- 6" x 9" Aramid fiber reinforced Injection Molded Polypropylene (IMPP) cone construction

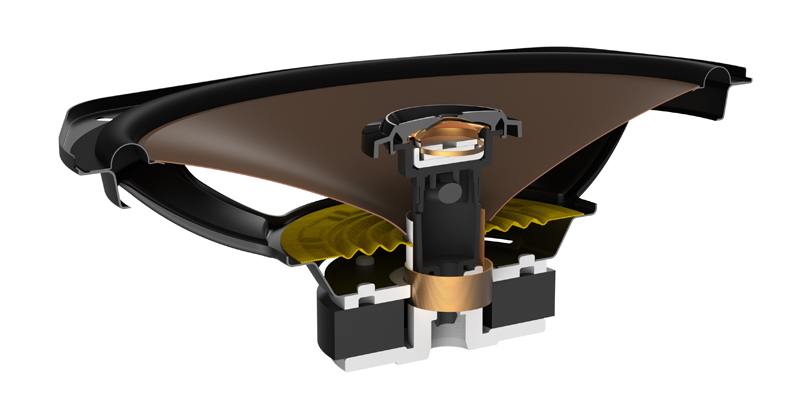

- Pioneer patented P.F.S.S. (Progressive Flex Suspension System)(U.S. Patent 20,120,106,777)
What's in the Box
- Two 6"x9" 2-way coaxial speakers
- Two Pioneer Multi-Fit mounting brackets

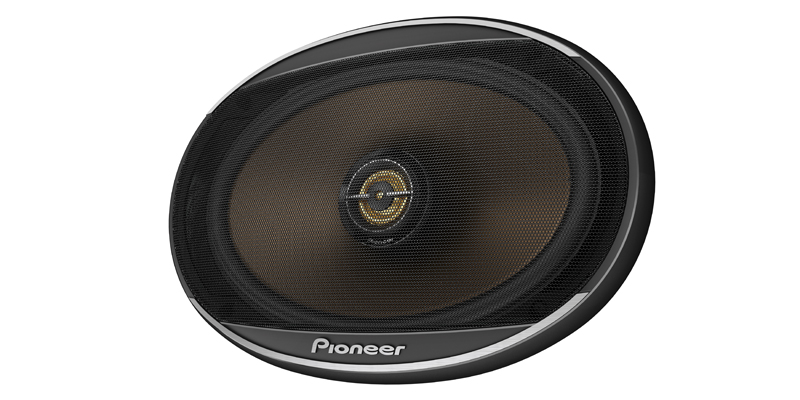

- Two protective Grilles
- Two 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
- Eight 1-1/8" Screws
- Eight 3/8" Screws
- Warranty information
| System | |
|---|---|
| System Type | Coaxial 2-way |
| Sound Pressure Level (Sensitivity) | 92 dB (+- 1.5dB) |
| Frequency Range | 29 Hz to 49k Hz |
| Continuous Power Handling (RMS) | 95 Watts |
| Maximum Peak Power Handling | 460 Watts |
| Nominal Impedance | 4 ohms |
| Woofer | |
| Diameter | 6" x 9" |
| Cone Material | Aramid fiber reinforced IMPP |
| Surround Material | Elastic Polymer |
| Basket Material | Iron Plate Press |
| Magnet Material | Ferrite |
| Magnet Weight | 11.39 oz |
| Voice Coil Bobbin | Glass Imide |
| Voice Coil wire | Copper |
| Mounting Depth | 2-7/8" (Shallow basket) |
| Tweeter | |
| Type | Component Polyetherimide (PEI) hard dome tweeter |
| Diameter | 18 mm |
| Diaphragm Material | Film (PEI) |
| Magnet Material | Neodymium |
| Magnet Weight | 0.17 |
| Warranty | |
| Warranty (must be purchased from a Authorized Pioneer Dealer) | 1 year |
| Location | Stock |
|---|---|
| Kitchener | Yes |
| Mississauga | Yes |
| Newmarket | Yes |
| Scarborough | Yes |
| Toronto Leaside | Yes |
| Woodbridge | Yes |
| Whitby | No |
