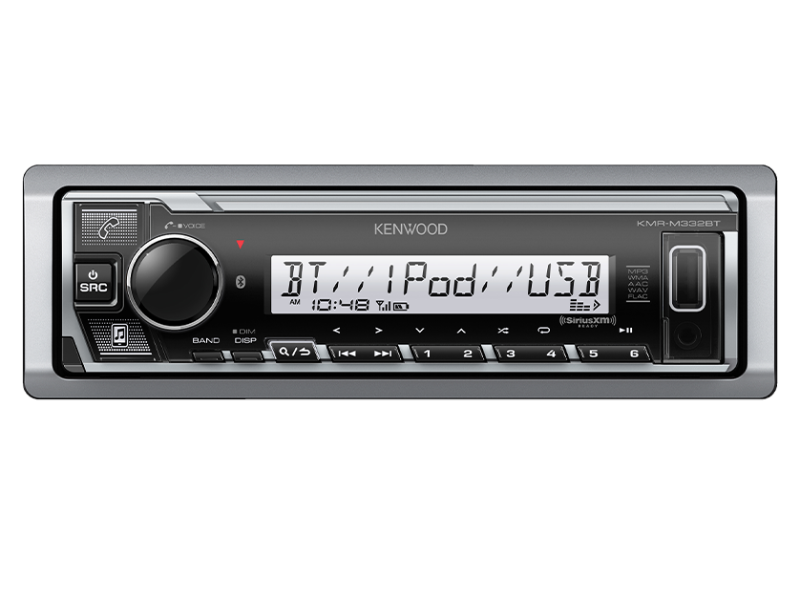

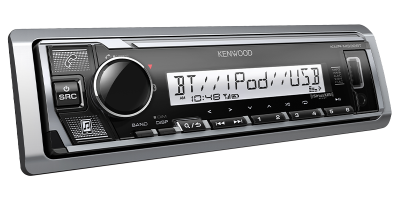

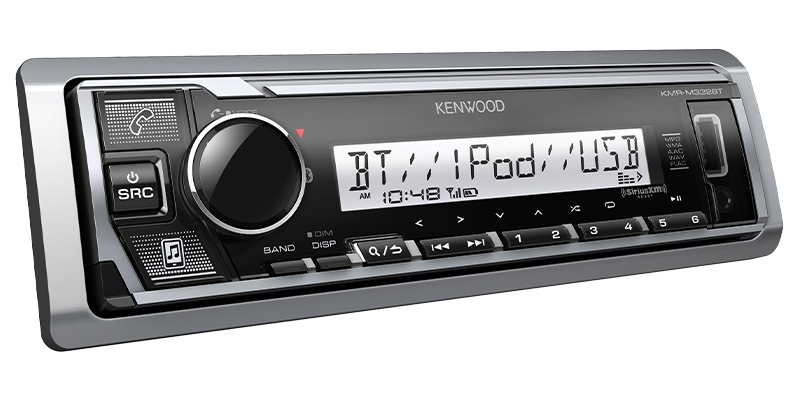

Kenwood Digital Media Receiver with Bluetooth - KMR-M332BT
$ 178 00
WAS $21900
OR $ 29 67/mo
+ taxes/fees With 6 month financing |
We now offer financing powered by
Apply Now
SAVE $41 - 255 Segment 1.5 Line Text Display
- Bluetooth Direct Access Button
- Variable Color Illumination
- 13Band EQ & DTA
- Conformal Coating
- Optional Wired Remote Control Ready
- Front USB & AUX IN
- 3 Preouts 4.0V
Features

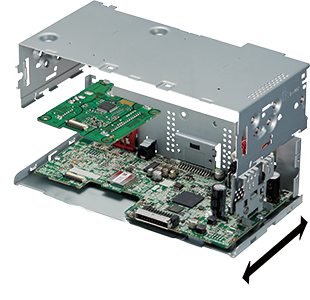

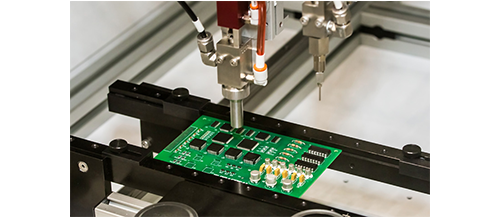

Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
Drive EQ
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Variable Color Illumination
Bright variable color LEDs can be adjusted to match any color dash lighting.
Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Short Chassis
With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Smartphone Connectivity
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

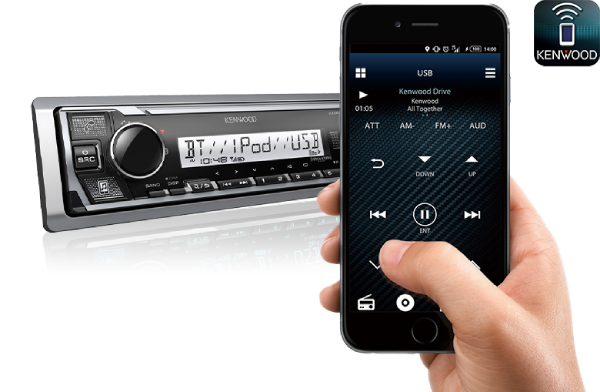

Control the Receiver from Your Smartphone with the KENWOOD Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.

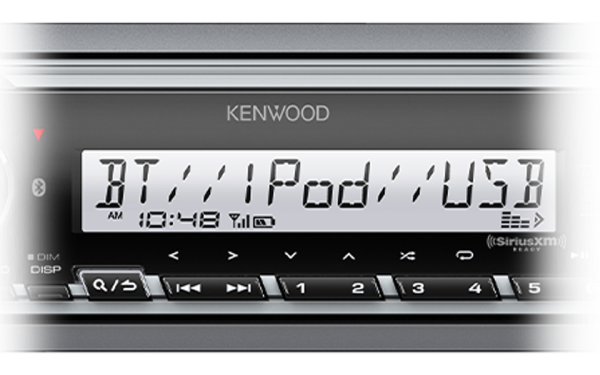

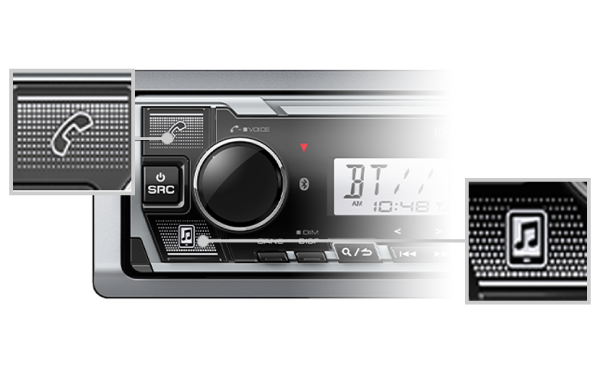

Designed for Ease of Use
Direct Bluetooth keys allow you to access quickly to answering to and making a
And Vertical Alignment LCD display secures higher visibility during day-time drive.
Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
The Best Audio Experience
13-Band EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

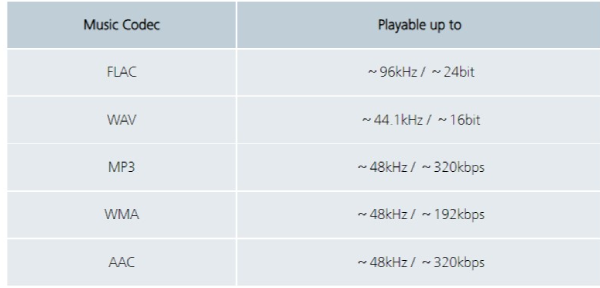

Playable USB Files
Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.

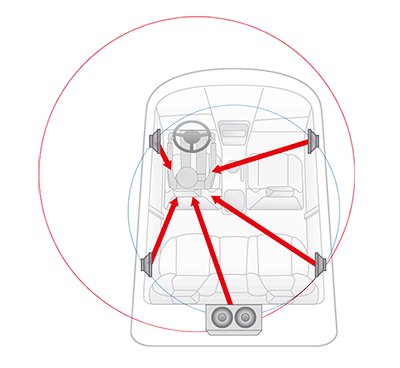

Digital Time Alignment
Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

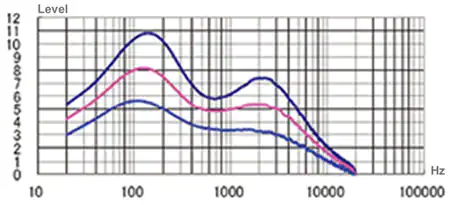

Drive Equalizer
Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

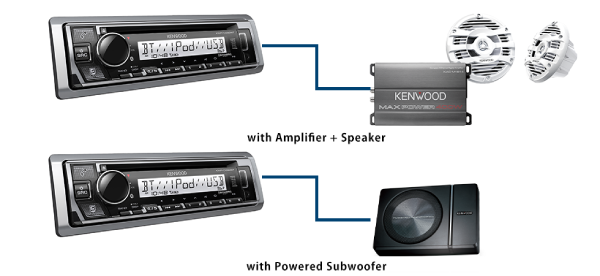

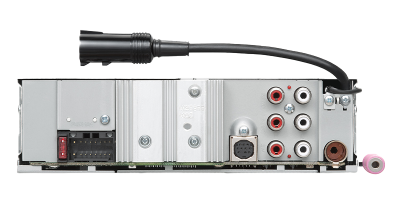

System EXPANSION Ready

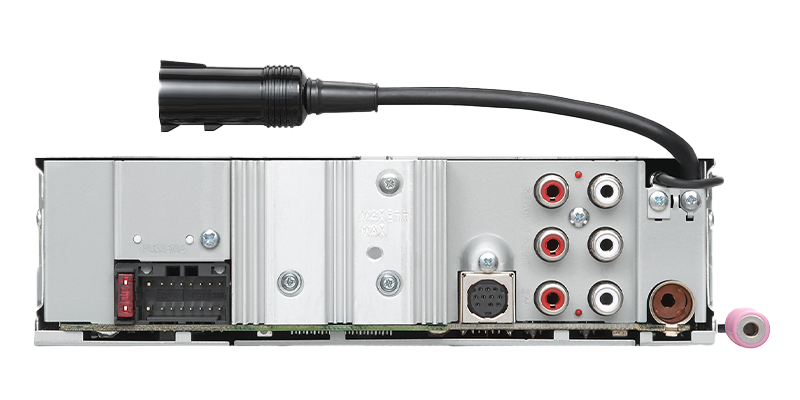

The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.
Additional Features

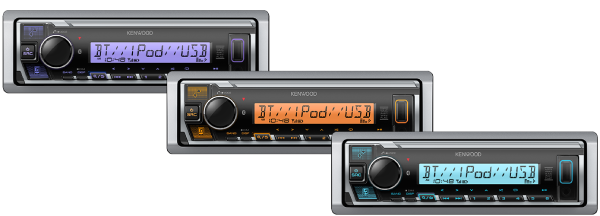

Variable Color Display
Bright variable color LED's can be adjusted to match your environment.
Short Chassis Design
With audio receivers shorter in depth, installation is made easier in a wider range of cars.
Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.(Optional SiriusXM tuner required, sold separately)
Spanish and French Text Display
On-screen display menu now available in Spanish and French.
Wired Remote Control (Optional)
Remote control and remote extension cables are optionally available.
| GENE | |
|---|---|
| Net Weight | 0.7(kg) 1.5(lbs) (Trim plate and Mounting sleeve: Included) |
| Operating voltage | 12V DC car battery |
| Bluetooth | |
| Profile | AVRCP 1.6.1 (Audio/Video Remote Control Profile) |
| Profile | A2DP(Advanced Audio Distribution Profile) |
| Profile | PBAP(Phonebook Access Profile) |
| Profile | SPP(Serial Port Profile) |
| Profile | HFP 1.7.1 (Hands Free Profile) |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| USB I/F | |
| Channel Separation | 91dB |
| Dynamic Range | 93dB |
| Maximum Supply current | DC5V(DC logo) 1.5A |
| Frequency Response | 20Hz to 20kHz(±1dB) |
| S/N Ratio (dB) | 98dB(1kHz) |
| Bluetooth | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| Frequency Range | 2.402 to 2.480GHz |
| Version | Bluetooth 4.2 |
| TONE | |
| Band13 | 16kHz ±9dB |
| Band12 | 10kHz ±9dB |
| Band11 | 6.3kHz ±9dB |
| Band10 | 4kHz ±9dB |
| Band9 | 2.5kHz ±9dB |
| Band8 | 1.6kHz ±9dB |
| Band7 | 1kHz ±9dB |
| Band6 | 630Hz ±9dB |
| Band5 | 400Hz ±9dB |
| Band4 | 250Hz ±9dB |
| Band3 | 160Hz ±9dB |
| Band2 | 100Hz ±9dB |
| Band1 | 62.5Hz ±9dB |
| AMP | |
| Full Bandwidth Power (at less than 1%THD) | 22Wx4 |
| PWR(MAX) | 50Wx4 |
| AUX Input | |
| Input Impedance | 30kΩ |
| Input Maximum Voltage | 1000mV |
| Frequency Response | 20Hz to 20kHz ±3dB |
| USB I/F | |
| FLAC Decode | FLAC file (Up to 24bit/96kHz) |
| WAV Decode | Linear-PCM |
| AAC Decode | AAC-LC ".aac",".m4a" files |
| WMA Decode | Compliant with Windows Media Audio |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| File System | FAT12 / 16 / 32 |
| USB | USB 1.1 / 2.0 High Speed |
| Specifications | |
| Speaker Impedance(Ω) | 4 to 8Ω |
| Preout Impedance(Ω) | =<600Ω |
| Preout Level(mV)/Load -Unbalanced | 4000mV/10kΩ |
| MW (AM) | |
| (S/N 20dB) | - |
| Usable Sensitivity | 29dBμ (28.2μV) |
| (Frequency step) | (10kHz) |
| Frequency Range(kHz) | 530kHz to 1700kHz |
| FM | |
| Stereo Separation | 40dB(1kHz) |
| S/N(dB) | 64.0dB(MONO) |
| DIN S/N:46dB | (2.0μV/75Ω） |
| Frequency Response(±3.0dB) | 30Hz to 15kHz |
| Quieting Sensitivity | 17.2dBf |
| S/N:30dB | (0.71μV/75Ω） |
| Usable Sensitivity | 8.2dBf |
| (Frequency step) | (200kHz) |
| Frequency Range(MHz) | 87.9MHz to 107.9MHz |
| GENE | |
| Installation Size (W) (H) (D) | 182(mm) 7-3/16(in), 53(mm) 2-1/16(in), 100(mm) 3-15/16(in) |
