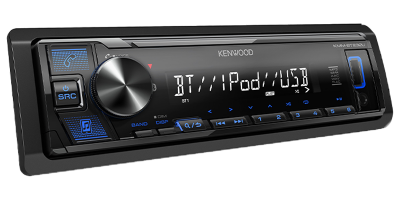

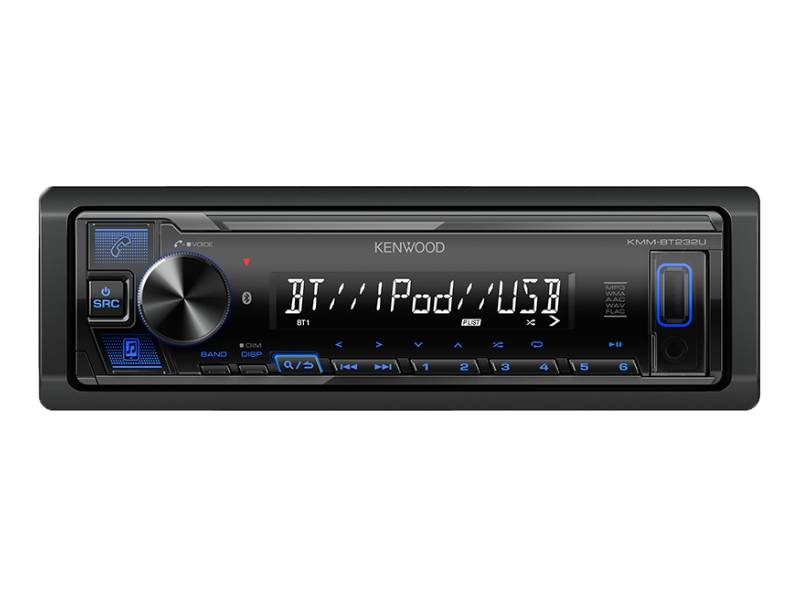

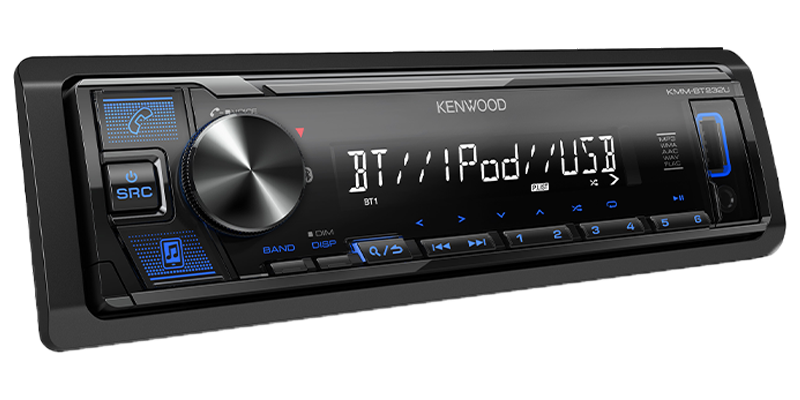

Kenwood Digital Media Receiver with Bluetooth - KMM-BT232U

SKU : KMM-BT232U   Web ID : KMMBT232

$ 128 00
WAS $14900
OR
$ 21 33/mo
+ taxes/fees
With 6 month financing
As advertised
Available Condition: New
Free Shipping

We now offer financing powered by Apply Now

  • SAVE $21
  • As advertised
  • Free Shipping
Free Shipping
Literature
  • 205 Segment 1 Line Text Display
  • Blue/White Color Illumination
  • Bluetooth Direct Access button
  • Short Chassis
  • Front USB & AUX In
  • 13 Band EQ & DTA
  • 1 Preput 2.5V

Music Mix

Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

Remote App

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

Graphic EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for listeners.

Drive EQ

Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.

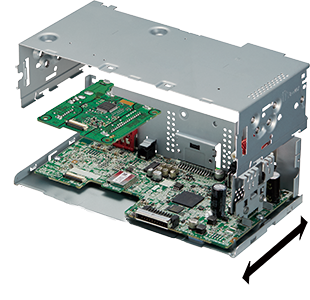

Short Chassis

With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.

Smartphone Connectivity



Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.



Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

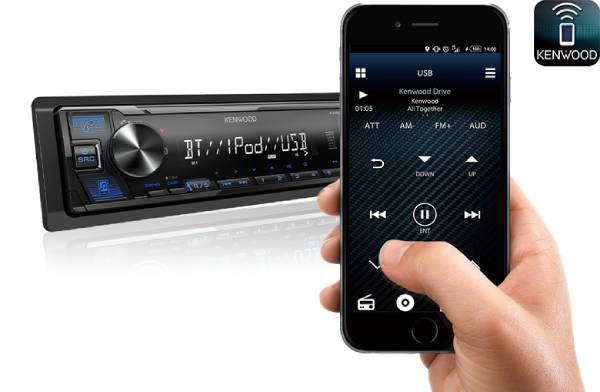

Control the Receiver from Your Smartphone with the KENWOOD Remote App

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).



Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

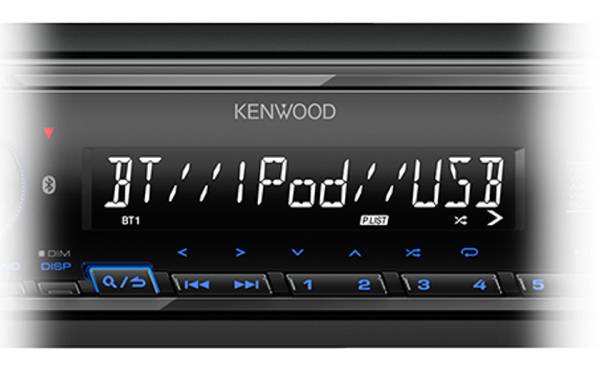

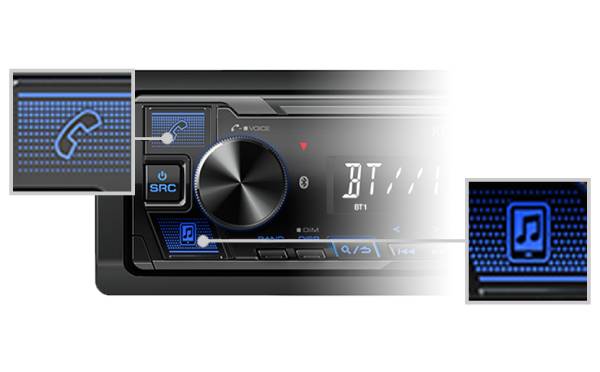

Designed for Ease of Use

Direct Bluetooth keys allow you to access quickly to answering to and making a call, and entering Bluetooth Audio source.



And Vertical Alignment LCD display secures higher visibility during day-time drive.



Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices

Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.



The Best Audio Experience

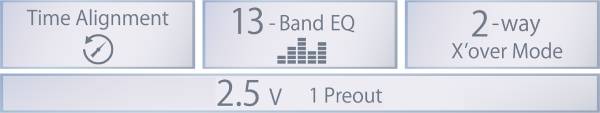

13-Band EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

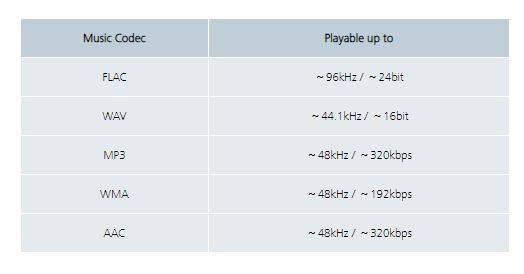

Playable USB Files

Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.

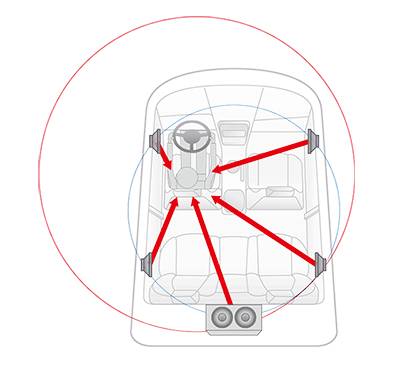

Digital Time Alignment

Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

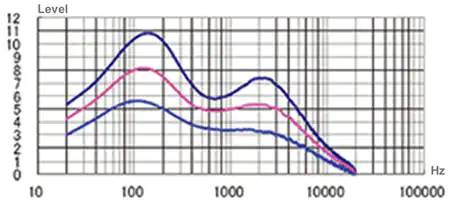

Drive Equalizer

Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

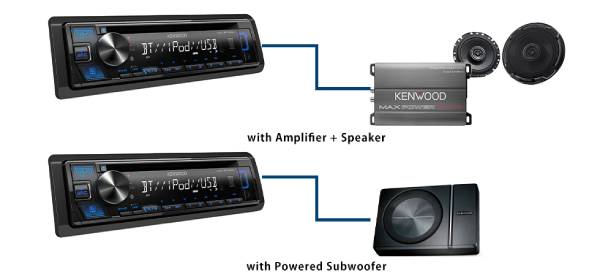

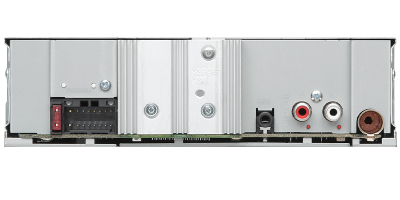

System EXPANSION Ready

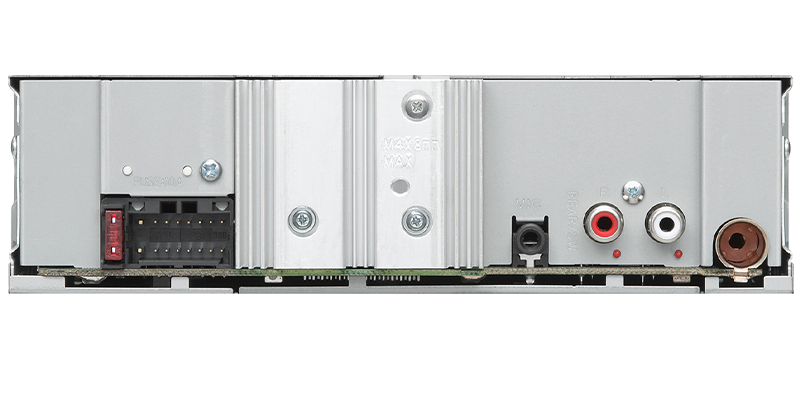

The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.



Additional Features



Short Chassis Design

With audio receivers shorter in depth, installation is made easier in a wider range of cars.



Spanish and French Text Display

On-screen display menu now available in Spanish and French.

Bluetooth
RF Output Power (E.I.R.P.)+4dBm (MAX), Power Class 2
Frequency Range2.402 to 2.480GHz
ProfileAVRCP 1.6.1 (Audio/Video Remote Control Profile)
ProfileA2DP (Advanced Audio Distribution Profile)
ProfilePBAP (Phonebook Access Profile)
ProfileSPP (Serial Port Profile)
ProfileHFP 1.7.1 (Hands Free Profile)
Maximum Communication rangeLine of sight approx.10m(32.8ft)
VersionBluetooth 4.2
USB I/F
FLAC DecodeFLAC file (Up to 96kHz/24bit)
WAV DecodeLinear-PCM
WMA DecodeCompliant with Windows Media Audio
AAC DecodeAAC-LC ".aac",".m4a" files
USBUSB 1.1 / 2.0 High Speed
File SystemFAT12 / 16 / 32
Maximum Supply currentDC5V(DC logo) 1.5A
Frequency Response20Hz to 20kHz(±1dB)
S/N Ratio (dB)98dB(1kHz)
Channel Separation91dB
Dynamic Range93dB
MP3 DecodeCompliant with MPEG-1/2 Audio Layer-3
GENE
Operating voltage12V DC car battery
Installation Size(W) (H) (D)182(mm) 7-3/16(in), 53(mm) 2-1/16(in), 100(mm) 3-15/16(in)
Net Weight0.6(kg) 1.3(lbs) (Trim plate and Mounting sleeve: Included)
TONE
Band1210kHz ±9dB
Band1316kHz ±9dB
Band116.3kHz ±9dB
Band92.5kHz ±9dB
Band104kHz ±9dB
Band81.6kHz ±9dB
Band6630Hz ±9dB
Band71kHz ±9dB
Band5400Hz ±9dB
Band3160Hz ±9dB
Band4250Hz ±9dB
Band2100Hz ±9dB
Band162.5Hz ±9dB
AMP
Full Bandwidth Power(at less than 1%THD)22Wx4
PWR(MAX)50Wx4
AUXInput
Input Impedance30kΩ
Input Maximum Voltage1000mV
Frequency Response20Hz to 20kHz ±3dB
Speaker Impedance(Ω)
Speaker Impedance(Ω)4 to 8Ω
Preout Impedance(Ω)
Preout Impedance(Ω)=<600Ω
Preout Level(mV)/Load
-Unbalanced2500mV/10kΩ
MW(AM)
Usable Sensitivity(S/N 20dB)29dBμ (28.2μV)
Frequency Range(kHz)(Frequency step)530kHz to 1700kHz(10kHz)
FM
Stereo Separation40dB(1kHz)
S/N(dB)64.0dB(MONO)
Frequency Response(±3.0dB)30Hz to 15kHz
Quieting SensitivityDIN S/N:46dB17.2dBf(2.0μV/75Ω)
Usable SensitivityS/N:30dB8.2dBf(0.71μV/75Ω)
Frequency Range(MHz)(Frequency step)87.9MHz to 107.9MHz(200kHz)
