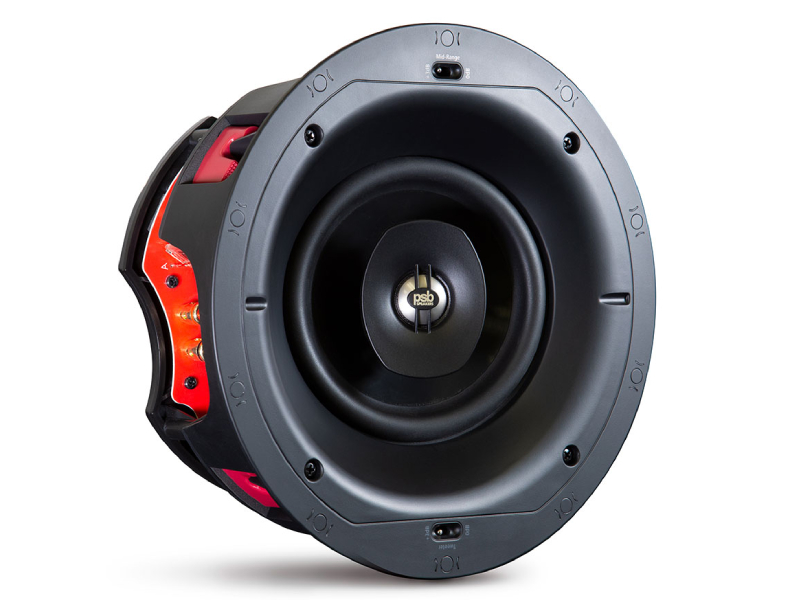

PSB Speakers 6 Inch Angled In-Ceiling Speaker - CS AIC 860

SKU : CS AIC 860   Web ID : CSAIC860   UPC : 786357000930

$ 949 00
/ Each
OR
$ 158 17/mo
+ taxes/fees
With 6 month financing
Available Special Order Condition: New
Free Shipping

We now offer financing powered by Apply Now

  • SOLD AS EACH
  • Special buy taking orders now
  • Free Shipping
Free Shipping
Literature

Premium 2-Way Angled In-Ceiling Speaker

The CS AIC 860 is not just another in-ceiling speaker. Rather it is an angled in-ceiling designed to allow the proper dispersion required to create a true three-dimensional sound stage when recessed into the ceiling. This is especially true for high performance in-ceiling stereo or home theater applications.

  • PSB technology and expertise in an Angled In-Ceiling Speaker
  • Pivoting Wave-guide Tweeter and Angled Woofer
  • Frameless round and square grilles

Pinpoint Accuracy, Dispersion and Lifelike Imaging are all featured

THE CS AIC 860 features many of PSB’s core technologies with design by Paul Barton the design of the CS AIC860 minimizes the amount of refraction common to many angled speakers which can often “give away” the position of the speaker. With the new PSB design , the listener experiences a wide and consistent sound field which seems to emanate from the chosen listening area rather than from the installation point. So with proper dispersion and tuning, true 3-dimensional lifelike imaging is attainable.

The premium 6.5” woofer of the AIC 860 utilizes a carbon-filled polypropylene cone, for both stiffness and light weight. This woofer includes trickle-down technology that PSB has developed for its flagship Imagine Series to get higher sensitivity, bass extension and lower harmonic distortion at high playback levels. High frequencies are capably handled by a 1” titanium tweeter with Wave Guide and indexed adjustment for precise adjustment of the tweeter’s acoustic axis. Also included are acoustic adjustments for the mid/woofer and tweeter level for additional tuning to the room or listener location.

For maximum visual appeal, the CS AIC 860 features frameless magnetic grilles with invisible scrims for a seamless visual appearance. Both round and square grilles are provided, adding design flexibility while simplifying inventory requirements. Installation is easy and predictable with the improved, simple, foolproof mounting system, using heavy duty doglegs. Cutting templates are included. Optional Pre-construction brackets and back cans are also available.

Like all PSB speakers, final voicing is performed by Founder and Chief Designer, Paul Barton, at Canada’s famed National Research Council. PSB’s research has discovered how listener preferences can be integrated into a wide range of speaker designs for many different applications, yet all featuring consistent sound quality that is natural and lifelike.

Key Features of the PSB CS AIC860:

  • PSB technology and expertise in an Angled In-Ceiling Speaker
  • Pivoting Wave-guide Tweeter and Angled Woofer
  • Frameless round and square grilles
  • Open-back design with integrated back box available, as an option
  • Individual adjustment level switches for Tweeter and Woofer
  • Design and final voicing engineered by Paul Barton
Frequency Response
On Axis @ 0° ±3dB48-20,000Hz
Sensitivity
Anechoic Chamber86dB
Listening Room88dB
Impedance
Nominal6 Ohms
Minimum4 Ohms
Input Power
Recommended10 – 100 Watts
Acoustic Design
Tweeter (Nominal)1” (25mm) Titanium Dome with Ferrofluid
Woofer (Nominal)6½” (165mm) Fiber filled, Injection Molded Basket Black Polypropylene Cone Rubber Surround
Design TypeOpen Back
EQ AdjustmentTweeter & Woofer Switch
Dimensions / Weights / Finish
Size (W x H x D)Grille Dimensions (Frameless Design) – 10 3/4” (272mm) Rough-in/Mounting Hole – 9 3/4” (245mm) Mounting Depth with Backcan – 5 1/4” (133mm)
WeightNet – 5.15 lb (2.3 kg)/each
Grille FinishWhite
FINISH//CONSTRUCTION
Finish FrameABS
Back BoxOptional Integrated Acoustic Backbox
Grille MaterialSteel; Perforated with white scrim
TypeFrameless
ConnectorsGold-plated, Spring Loaded, 12AWG
LocationStock
Brampton (Trinity Commons)No
KitchenerNo
MississaugaNo
NewmarketNo
ScarboroughNo
Toronto LeasideNo
WhitbyNo
WoodbridgeNo
