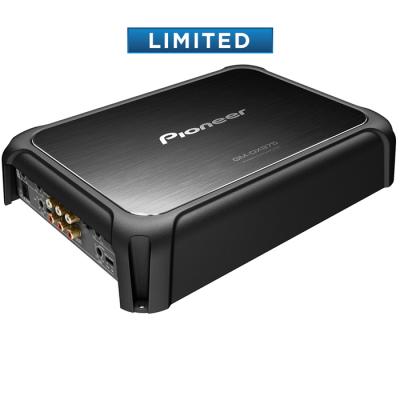

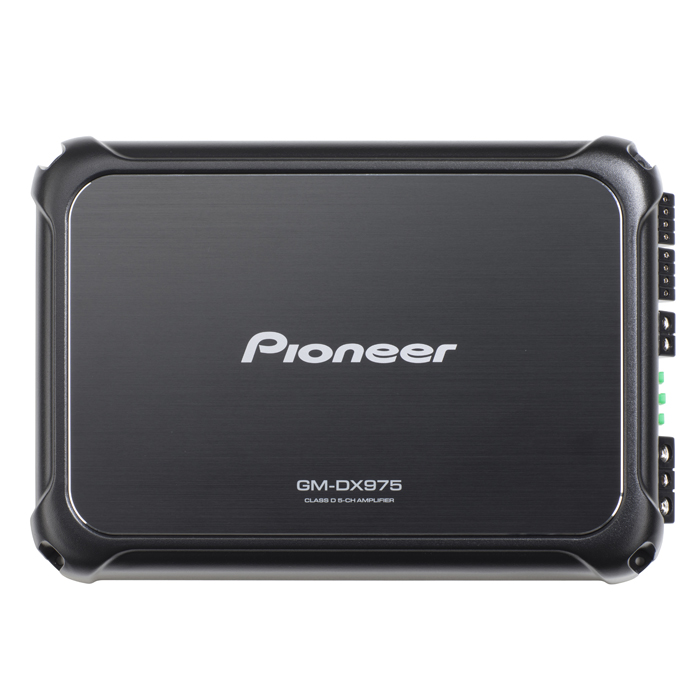

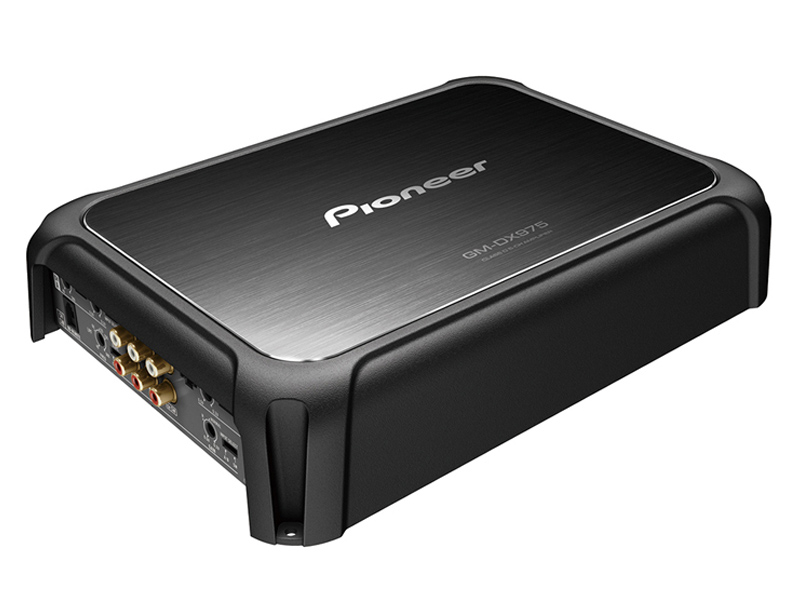

Pioneer Class-D 5-Channel Amplifier with Gold-plated RCA Terminals- GM-DX975
$ 418 99
WAS $49999
OR $ 69 83/mo
+ taxes/fees With 6 month financing |
Available Special Order Condition: New
Free Shipping
We now offer financing powered by
Apply Now
SAVE $81 - 2,000 Watts Max Power
- High Quality Textured Aluminum Panel and Tough Frame
- Variable High Pass and Low-Pass Filters
- Gold-plated RCA Terminals
- Hi-Res Audio Capable

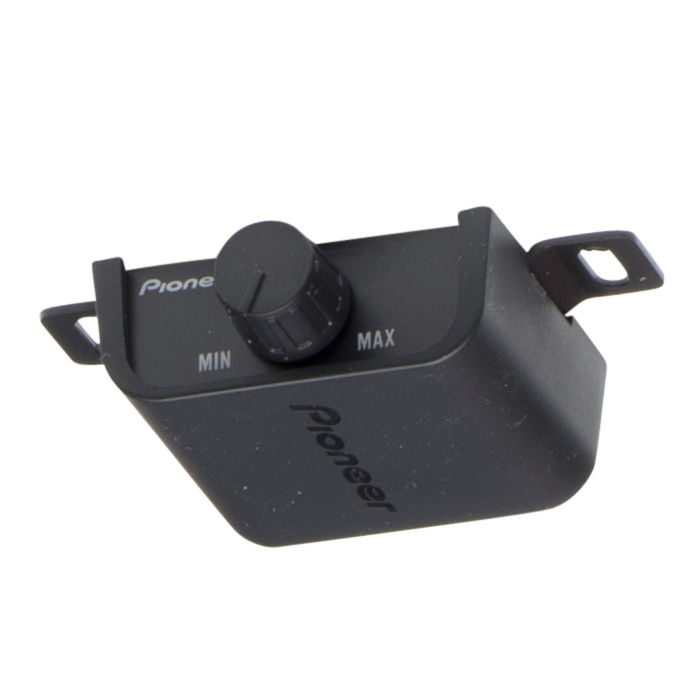

- Bass Boost Remote included
| General | |
|---|---|

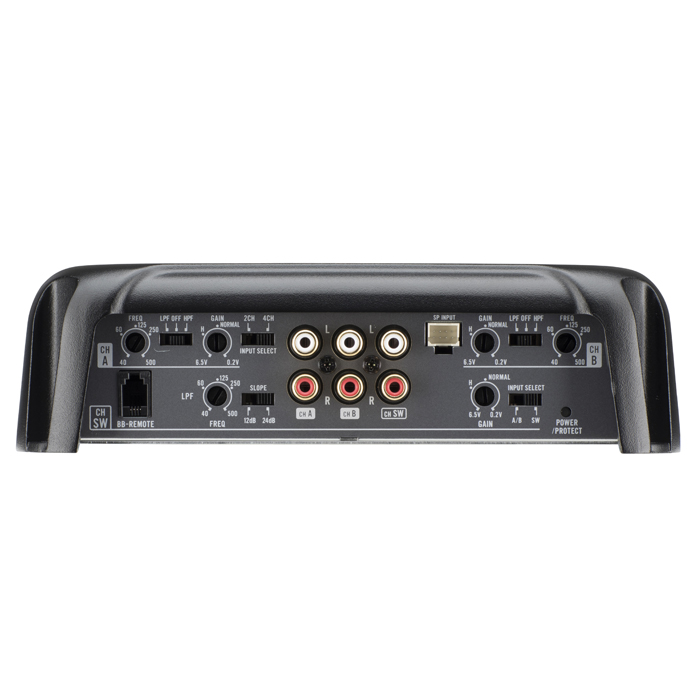

| RCA Inputs | 5-CH (Gold Plated) |
| Amplifer Class | CLASS-D |
| High Quality Sound Parts | Yes |
| Hi-Res Certified | Yes |
| Speaker Level Inputs | Yes |
| Crossover Type | Adjustable HPF/LPF |
| Bridgeable | Yes |
| Warranty (must be purchased from an Authorized Pioneer Dealer) | 1 Year |
| Specifications | |
| Continuous Power (RMS) Output at 2 Ohms | 100W x 4 (Main channel), 600W x 1 (Subwoofer channel) |
| Continuous Power (RMS) Output at 4 Ohms | 75W x 4 (Main channel), 350W x 1 (Subwoofer channel) |
| Continuous Power (RMS) Output - Bridged at 4 Ohms | 200W x 2 (Main channel), 350W x 1 (Subwoofer channel) |
| Frequency Response | A/B CH: 10 Hz ~ 50 kHz (+0dB, -3dB) / SUB CH: 10 Hz ~ 500 Hz (+0dB, -3dB) |
| Total Harmonic Distortion (THD) | A/B CH: <0.05% (1 kHz) / SUB CH: <0.05% (100Hz) |
| Signal-to-Noise (SN) Ratio | > 94dB |

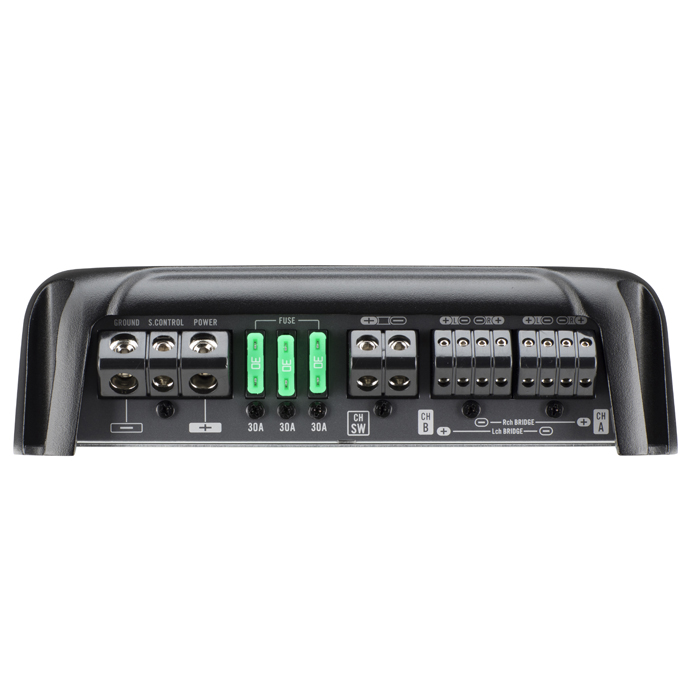

| Fuse Rating | 30A x 3 |
| Low-Pass Crossover Frequency | 40 Hz |
| Low Pass Slope (dB/octave) | -12dB/oct (A/B CH) / -12dB/-24dB (SUB CH) |
| High-Pass Crossover Frequency | 500 Hz |
| Bass Boost Frequency | 50 Hz |
| Bass Boost Level | 0-18dB |
| Bass Boost Remote | Yes |
| Automatic Signal Sensing and Turn-On | Yes |
| Hi-Volt Input Level Control | 200 mV to 6.5 V |
| Terminal Type | Block |
| Load Impedance Allowance (Ohms) | 2 to 4 |
| Protection Control System | Yes |
| Dimensions | 12.4" x 2" x 7.87" |
| Location | Stock |
|---|---|
| Scarborough | Yes |
| Brampton (Trinity Commons) | No |
| Kitchener | No |
| London | No |
| Mississauga | No |
| Newmarket | No |
| Toronto Leaside | No |
| Whitby | No |
| Woodbridge | No |
