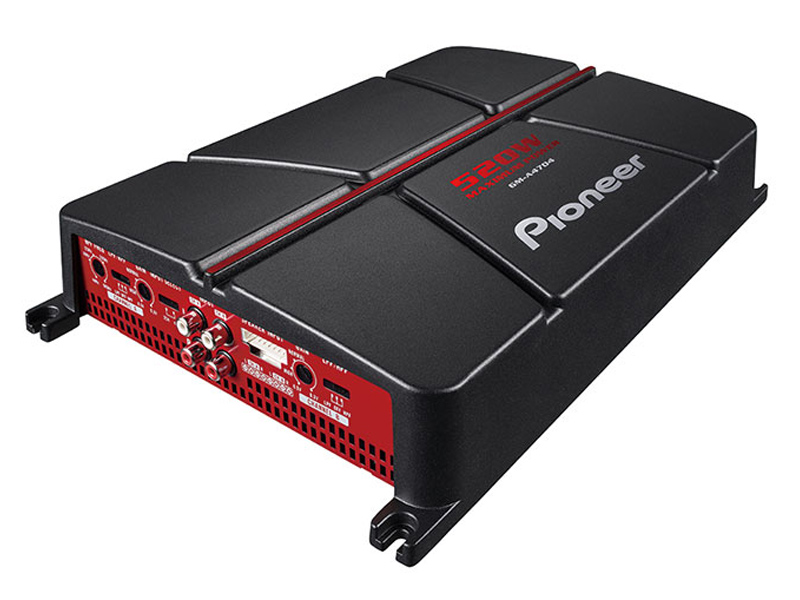

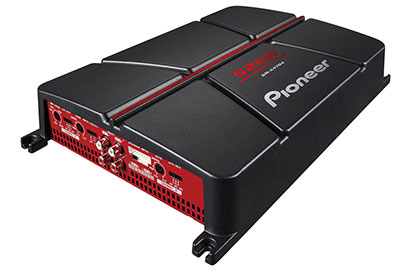

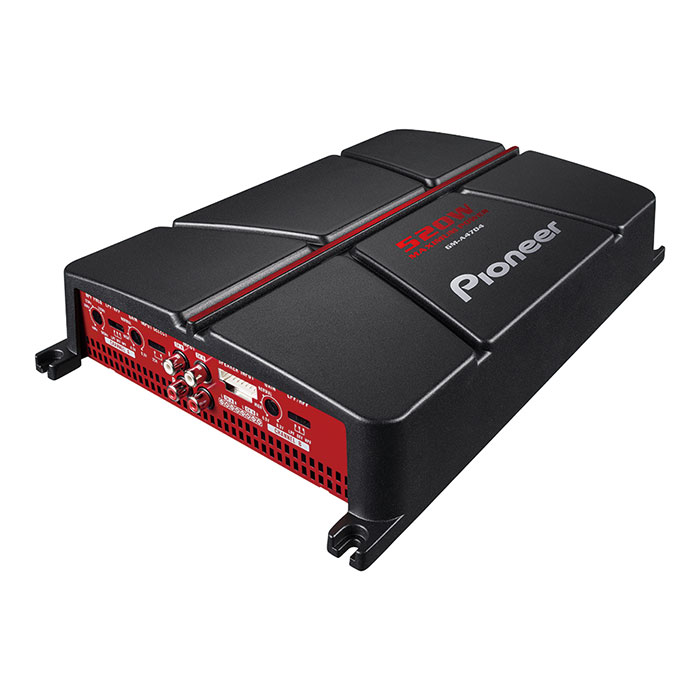

Pioneer 4-Channel Bridgeable Amplifier - GM-A4704

SKU : GM-A4704   Web ID : GMA4704   UPC : 884938340205

$ 167 99
WAS $19999
OR
$ 28 00/mo
+ taxes/fees
With 6 month financing
Available Condition: New
Free Shipping

We now offer financing powered by Apply Now

  • SAVE $32
  • Free Shipping
Free Shipping
  • 520 Watts Max Power
  • Automatic signal sensing and Turn-ON
  • Variable high pass filter
  • Speaker level inputs

Technology of the GM Series

From dramatic distinction to dramatic design, Pioneer's new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality.

Variable HPF

Variable HPF (high pass filter) allow for adjustable frequency from 40 Hz to 500 Hz and greater car audio system flexibility according to subwoofer characteristics and personal listening preference.

Growing Power, Shrinking Size

New Pioneer amps brilliantly integrate high-power performance superior to that of previous models in space-efficient sizes for flexibility of installation in various car cabins.

Automatic Signal Sensing and Turn-On

Pioneer amplifiers automatically select the proper input signal mode, either RCA or speaker level. When the receiver is turned on, the amplifier automatically turns on. When connected to an OEM receiver or a receiver without RCA output and utilizing speaker level output, the amp automatically senses the input mode and powers up in sync with the receiver.

When connected to an OEM receiver or a receiver without RCA output using speaker wire, the amplifier is turned on at the same time as the receiver. Pioneer's amplifiers automatically detect the input signal and select RCA level or speaker level.

General
Number of Channels4
Amplifer ClassClass AB
Maximum Power Output520W
Maximum Power Output at 2 Ω130W x 4
Maximum Power Output at 4 Ω80W x 4
Maximum Power Output - Bridged at 4 Ω520W
Nominal Power (RMS) Output at 2 Ω65W x 4
Nominal Power (RMS) Output at 4 Ω40W x 4
Nominal Power (RMS) Output - Bridged at 4 Ω130W x 2
Frequency Response10Hz ~ 70kHz (+0dB , -3dB)
Total Harmonic Distortion (THD)<0.05% ( 10W, 1kHz)
Signal-to-Noise (SN) Ratio> 94dB
Fuse Rating30A
Specifications
RCA Inputs4-CH
Crossover TypeAdjustable HPF/LPF
Low-Pass Crossover Frequency80 Hz
Low Pass Slope (dB/octave)-12db/oct (A/B CH)
High-Pass Crossover Frequency40-500 Hz
High-Pass Slope (dB/octave)12dB/oct
Hi-Volt Input Level Control0.3V to 6.5V (RCA in), 3.0V to 26V (SP in)
Terminal TypeScrew
Load Impedance Allowance (W)2 to 4
Dimensions (WxHxD)(inches)326(W) X 60(H) X 215(D) mm
Warranty1 Year
