Kicker CS-Series 6x9 Inch Component Speaker - 46CSS694

Kicker CS-Series 6x9 Inch Component Speaker - 46CSS694

SKU : 46CSS694 Web ID : 46CSS694 UPC : 713034088431

$ 249 ⁹⁵

$ 41 ⁶⁶/mo

+ taxes/fees
With 6 month financing

Best Price Guarantee

Available Special Order Condition: New

Free Shipping

We now offer financing powered by Apply Now

Special buy taking orders now
Free Shipping

Literature

Ask an Expert

The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.

CS Series CSS69

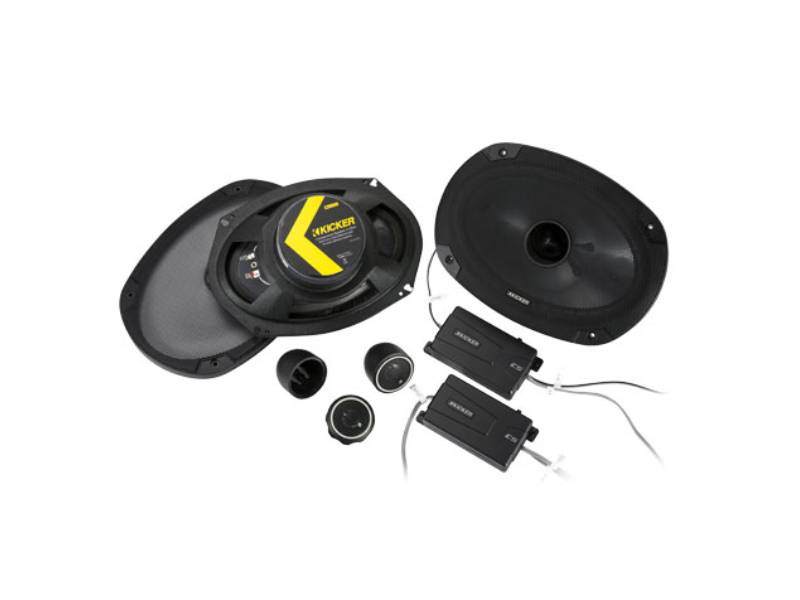

CS-Series 6x9-inch Component Speakers are built for awesome sound that plays as long as the ride takes you.

CS-Series components include titanium tweeters and two-way crossovers with a smooth 12dB slope and three-position tweeter adjustment switch (0dB/+3dB/+6dB), included in each external crossover. The optimized footprint means great sound with hassle-free installation, no matter where you mount it!

These CS speakers work best with 150 watts of recommended power. See below for more details.

Fits nearly every car made

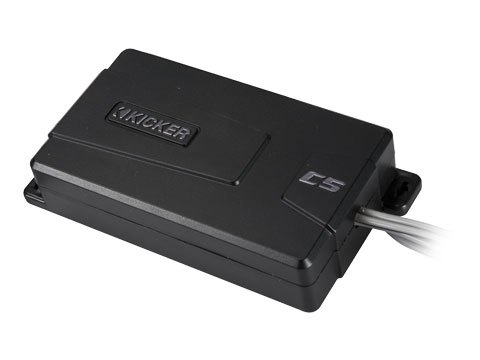

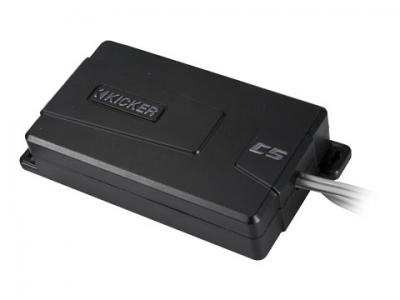

12dB crossovers with a smaller footprint for easier installation
Three-position tweeter switch for dialing in your highs
EVC™ (Extended Voice Coil) technology help deliver remarkable bass response

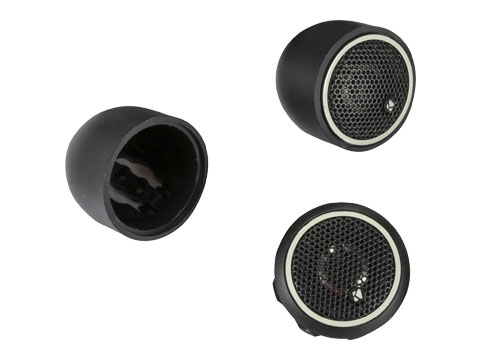

Titanium tweeter construction and neodymium magnets to reveal subtle details
UV-treated poly-foam surround assists with precise linear excursion
Phase plugs in the woofer cones eliminate any distortion

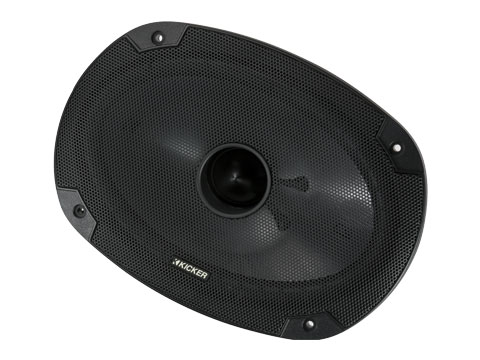

Steel mesh grilles protect your drivers
Three tweeter mounting options including flush, angled and surface pods

Specifications
Woofer Size \| in [mm]	6x9 [160x230]
Tweeter Size \| in [mm]	3/4 [20]
Dome Material	Titanium
Peak Power (watts, per ANSI/CTA-2031-A)	450
Recommended Amplifier Power (watts RMS)	150
Effective Frequency Range \| Hz	30-21k
Woofer Mounting Hole Diameter \| in [mm]	5 5/8 x 8 7/16 [143x215]
Woofer Bottom Mount Depth \| in [mm]	3 3/16 [81]
Flush Mounting Tweeter Hole Diameter \| in [mm]	1 9/16 [40]
Flush Mount Tweeter Depth \| in [mm]	9/16 [14.5]
High Pass \| dB, at Frequency \| Hz	12, 4000
Low Pass \| dB, at Frequency \| Hz	12, 4000
High Frequency Output Attenuation \| dB	0, 3, & 6
Bolt-Thru Grilles	Yes
