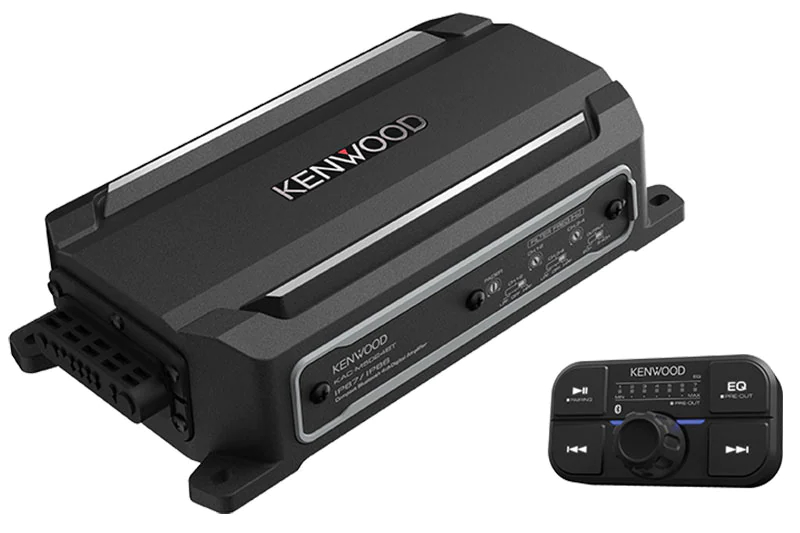

Kenwood Marine 4 Channel Compact Bluetooth Digital Amplifier - KAC-M5024BT

SKU : KAC-M5024BT   Web ID : KACM5024B   UPC : 019048232250

$ 548 00
WAS $59800
$ 91 33/mo
+ taxes/fees
With 6 month financing
Available Special Order Condition: New
Free Shipping

We now offer financing powered by Apply Now

  • SAVE $50
  • Special buy taking orders now
  • Free Shipping
Free Shipping
  • IP67/IP66 Certified Waterproof & Dustproof
  • RMS 50W x4 (4Ω)
  • RMS 75W x4 (2Ω)
  • 7 Selectable EQ Presets
  • Wired Remote Control Included
  • Built-in Bluetooth with aptX
  • RCA Line Output Terminals for System Expansion
  • (W)7-13/16” x (H)1-15/16” x (D)4-1/8”

EXTREME Durability


IPX7/IPX6/IP6X certified. The product can submerged up to 3.3 feet in water for 30 minutes, and can resist high-pressure, heavy sprays of water.

Salt Spray PROOF

ASTM B117 salt spray (or salt fog) corrosion testing ensures the amplifier will not corrode or fail in saltwater and other harsh environments.

Vibration PROOF

Thick 1/4" die-cast frame suppresses vibration.

Raised drain tunnel prevents moisture buildup.

Smartphone Connectivity

Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the amplifier at the same time, allowing you to take turns streaming music with your friends and family.

High Quality Bluetooth Streaming

Compatible with high quality codecs such as aptX and AAC, allowing you to be entertained with superior music playback.

ULTIMATE Performance

Increased Power Flow

Metal studs enable high current flow for connections between the amplifier and battery, resulting in powerful bass reproduction and enhanced overall sound quality.

High Quality Capacitors

PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

Magnetic Shielding

Magnetic shields for the output coils reduce radiated noise, further contributing to smooth and accurate sound.

SMART Remote Control

The Bluetooth antenna is housed inside the remote control, effectively providing a solid and sensible range for device connectivity, ensuring you stay connected to the music.

VERSATILE Installation

Multiple installation options are available, giving you complete control where you want it.

EASY Sound Control

With an easy to access volume knob, separated buttons with multi-controls, & LED indicators, this remote is your perfect companion.

7 Selectable EQ Presets

You can choose your favorite sound setting from 7 EQ Presets.

1:Natural, 2;Rock, 3:Pops, 4:Easy, 5:Top40, 6:Jazz, 7:Powerful

System EXPANSION Ready

The KAC-M5024BT has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer. You can even control the output level from the remote control by pressing the PRE-OUT button, then turning the volume knob.


Key Features

  • CTA-2006 Compliant
  • Class D
  • Power MOS-FET Switching Power Supply
  • 2 Ohms Load Capability
  • One-Sided Connection
  • Terminal Cover
  • Speaker Output Selector (2ch / 3ch4ch)
  • Pre Out terminals for Extension
  • Audio Controls on the Side
  • Corrosion-Resistant Sealed Cast Aluminum Chassis
  • Drain Tunnel
  • Bluetooth Wired Remote Control
  • Bluetooth (A2DP/AVRCP)
  • Bluetooth 5 Devices Pairing
  • Bluetooth 2 Devices Connection
  • EQ Control (Sub/Bass/Mid/Tre)
  • Water-proof & Dust-proof (Main Unit/DC cable)
  • Water-proof & Dust-proof (Remote Control Unit/cable)
  • ASTM B117 (Main Unit)

Other Features

  • apt-X
  • AAC
  • Blue Illumination for Bluetooth Status
  • Fuse Rubber Cover


  • Remote Control Unit
  • Mounting Bracket
  • Double-side adhesive tape
  • Stainless Steel Self-tapping Screw (Φ4 x 16mm) 4pcs
  • Self-tapping Screw (Φ3x8mm) 1pc
  • Instruction Manual
  • Warranty Card
Amplifier TypeClass D
CEA-2006 Primary Ratings
Power Output50Watts RMS x 4 at 4 Ohms, ≤1%THD+N
Signal-to-Noise Ratio74dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output
RMS Power at 14.4V
A/B (4 Ohms)50Watts RMS x 4 at 4 Ohms, 20Hz-20kHz , ≤1% THD+N
A/B (2 Ohms)75Watts RMS x 4 at 4 Ohms, 1kHz, ≤1%THD+N
A/B (Bridged 4 Ohms)150Watts RMS x2 at 4 Ohms, 1kHz, ≤1%THD+N
Signal to Noise Ratio89dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response10Hz-20kHz (+0dB, -3dB)
Speaker Impedance4Ω ( 2Ω to 8Ω allowable)
Bridged Connection4Ω to 8Ω allowable
Audio Section
Low-pass Filter50-200Hz, -12dB/oct (A/B CH)
High-pass Filter50-200Hz, -12dB/oct (A/B CH)
Filter SelecterLPF/OFF/HPF (A/B CH)
Output Selecter2ch, 3/4ch
Battery & Ground12" 10-gauge Pigtail Cable with Molded Strain Relief Bushing
Speaker Output12" 16-gauge Pigtail Cable with Molded Strain Relief Bushing
Line In (Pigtail RCA)No
Pre Out (Pigtail RCA)Yes (Sub)
Speaker Input (Pigtail RCA In)No
Connector for Wired Remote ControllerYes
Dimensions(WxHxD)198[mm] x 48.5 [mm] x 104 [mm],7-13/16" x 1-15/16" x 4-1/8"
Weight (kg)1.6 [kg] 3.5 [lbs]
Operating Voltage14.4V(11-16V allowable)
Current Consumption26A
