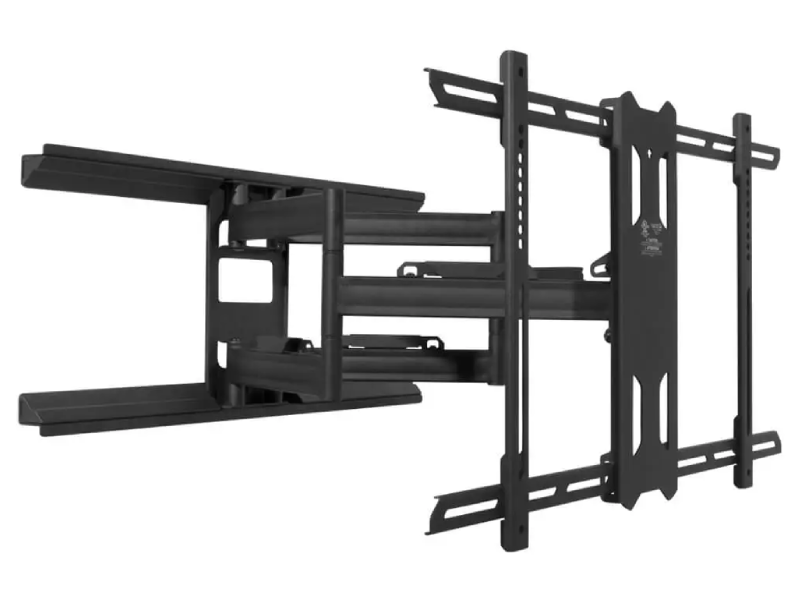

Kanto Full Motion TV Mount In Black - PDX680

SKU : PDX680   Web ID : PDX680   UPC : 800152715315

$ 199 00
$ 33 17/mo
+ taxes/fees
With 6 month financing
Available Condition: New
Free Shipping

We now offer financing powered by Apply Now

  • Free Shipping
Free Shipping

Meet PDX680, the standard in full motion mounts from Kanto.  Sitting a mere 2” from the wall and extending up to 24”, the PDX680 is the perfect solution for versatility.  PDX680 offers 18° of tilt and a 27” wall plate to accommodate up to 24” studs.  With integrated cable management and plastic caps to hide the lag bolts in the wall, the PDX680 is not only functional, but easy on the eyes too. Also available in white as PDX680W.

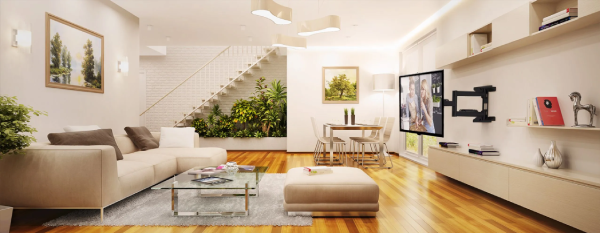

With 24″ of extension, the PDX680 gives you unparalleled viewing options.

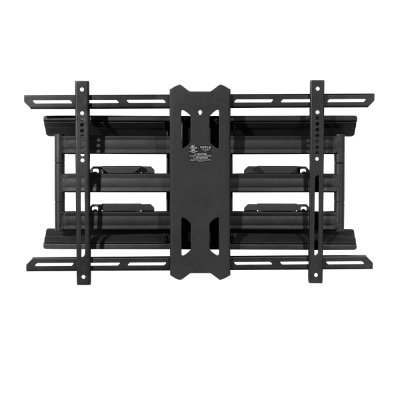

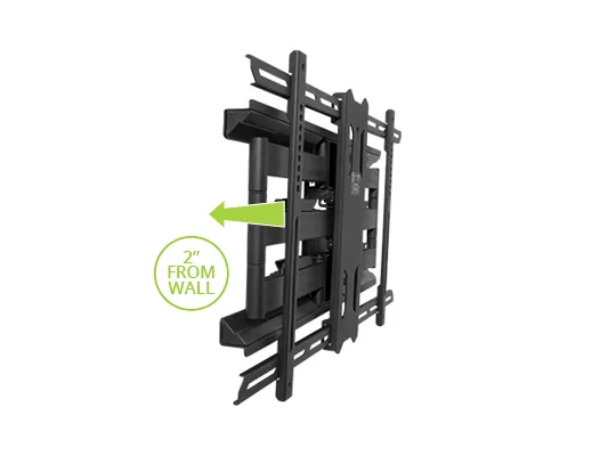

The unique design of the PDX680 allows your TV to sit 2 inch’s from the wall when fully pushed in.

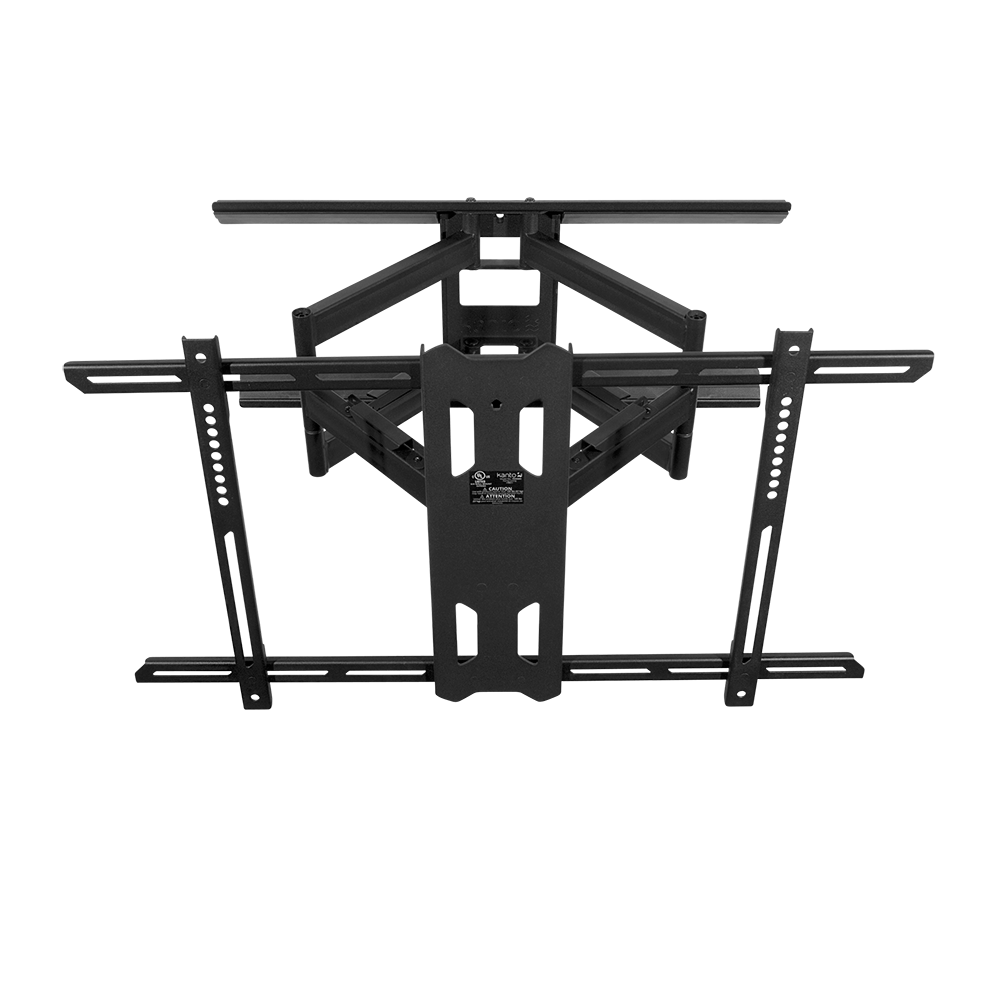

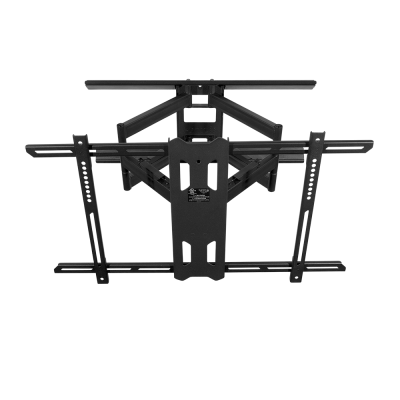

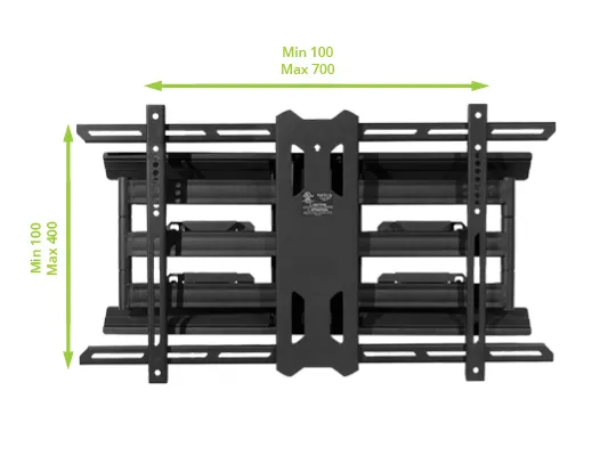

The H Frame mounting bracket accommodates VESA sizes from 100×100 to 700×400.  The mounting arms come with plenty of options to raise or lower the TV depending on the VESA pattern on the TV.


Magnetic Lag Bolt Covers

Magnetic covers go over the lag bolts to give the wall plate an elegant look. Remove the covers when you install or remove the wall plate from the wall.

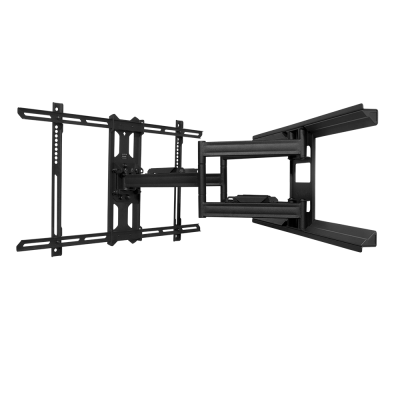

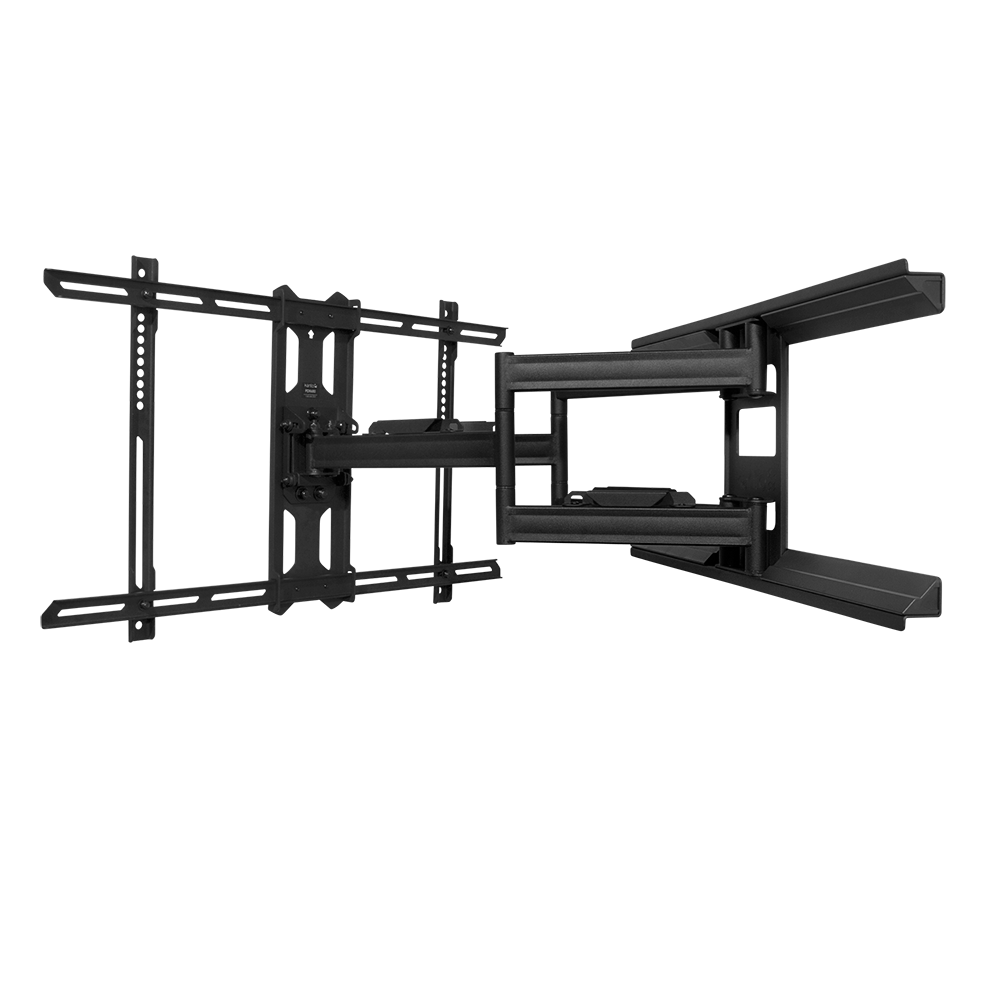

Extends 24 Inches

Even with its low-profile design the PDX680 can extend 24” from the wall, giving you plenty of room for tilting and swiveling your TV, or for reaching out from alcoves.

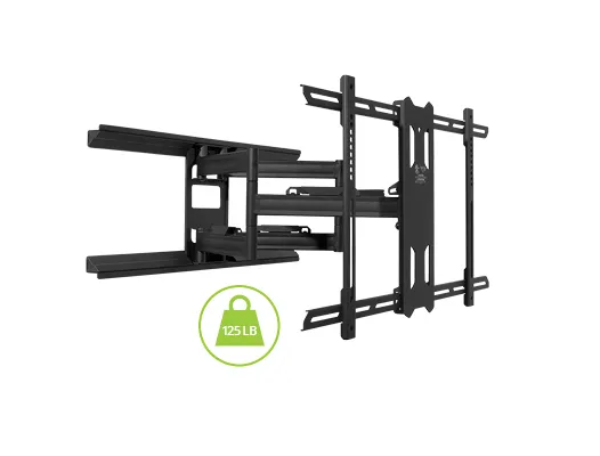

Supports 125 Pounds

Designed with strength in mind, the PDX680’s solid steel frame can hold up to 125 lb (57 kg) with no concern, even at full extension.

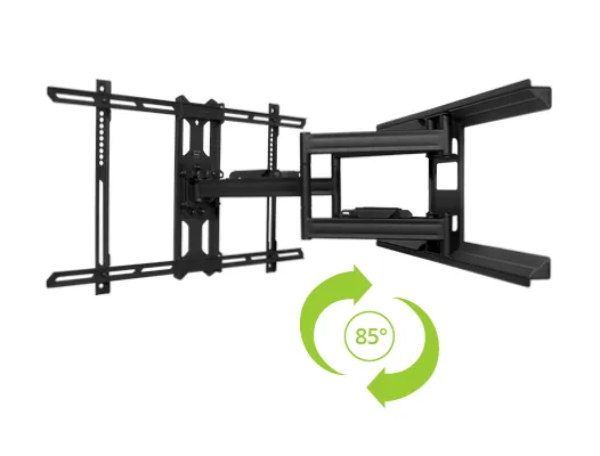

Swivels Up to 170 Degrees

The articulating arms on the PDX680 allow for a maximum of 170 degrees (with a 39″ TV). The larger the TV, the less swivel the PDX680 will have


Tilt Mechanism

The accessible tilt mechanism makes it easy to angle your TV 15° forward or 3° backward. Once you’ve found the best viewing angle, tighten the nuts to secure your TV in place.

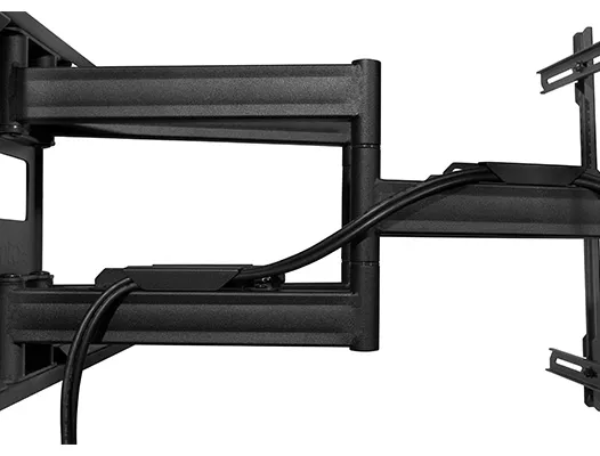

Sleek Cable Management

Four cable management raceways are attached to the bottom of the wishbone arms. These are easily accessed by loosening a screw, twisting them to the side, laying in the cable, and re-inserting the screw. Route multiple cables down one side, or power and HDMI down opposite sides – whatever works best.


Product Walkthrough

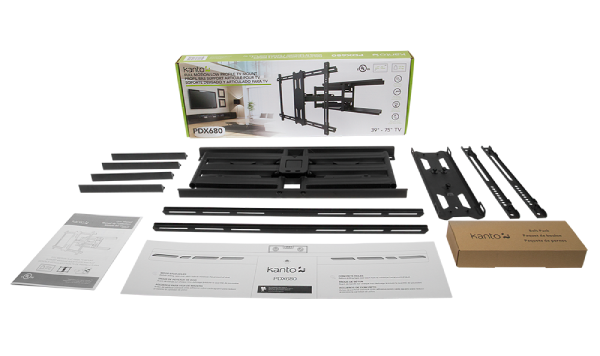

Ultra-easy install

We supply you with everything except a toolbox to ensure that your installation goes smoothly. Instruction manuals are provided in English, French, and Spanish, as well as the parts you need to mount your TV safely and securely. Easy-to-follow online videos and phone support are available to assist you along the way.



The PDX680 includes a labeled bolt pack with a variety of bolt diameters and lengths, as well as several spacers to allow a custom fit. Lag bolts and concrete anchors are provided so you can mount to wood studs and concrete walls.

TV Sizes39” to 80”
Weight Allowance125 lb (57 kg)
VESA Sizes100×100 to 700×400
Wall Plate27″ (68.5 cm); Accommodates dual studs with up to 24″ spacing
Inputs & Outputs
Tilt+15° to -3°
Swivel170° at full extension (with 39″ TV)
Extension24″ (61 cm) from the wall
ProfileSits 2″ (5 cm) from the wall, Integrated cable management, Adjustable horizontal leveling, Magnetic plastic covers to hide lag bolts
IncludesPaper wall template for marking pilot holes, Installation manual, White cable sleeve (White model only), All mounting hardware for wood stud and concrete installation
Warranty5 years
Shipping box weight27.6 lb (12.5 kg)
Shipping box dimensions29.6″ x 12.8″ x 4.3″ (75.2 x 32.5 x 11 cm)
Product weight22.3 lb (10.1 kg)
What’s Included
What’s IncludedPaper wall template for marking pilot holes
Installation manual
All mounting hardware for wood stud and concrete installation
