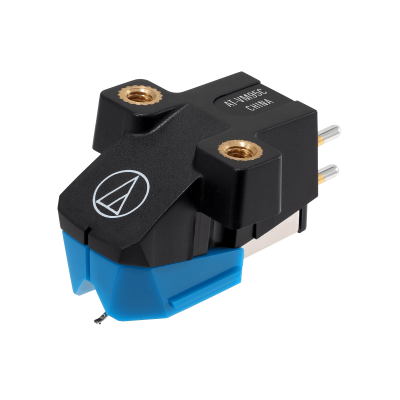

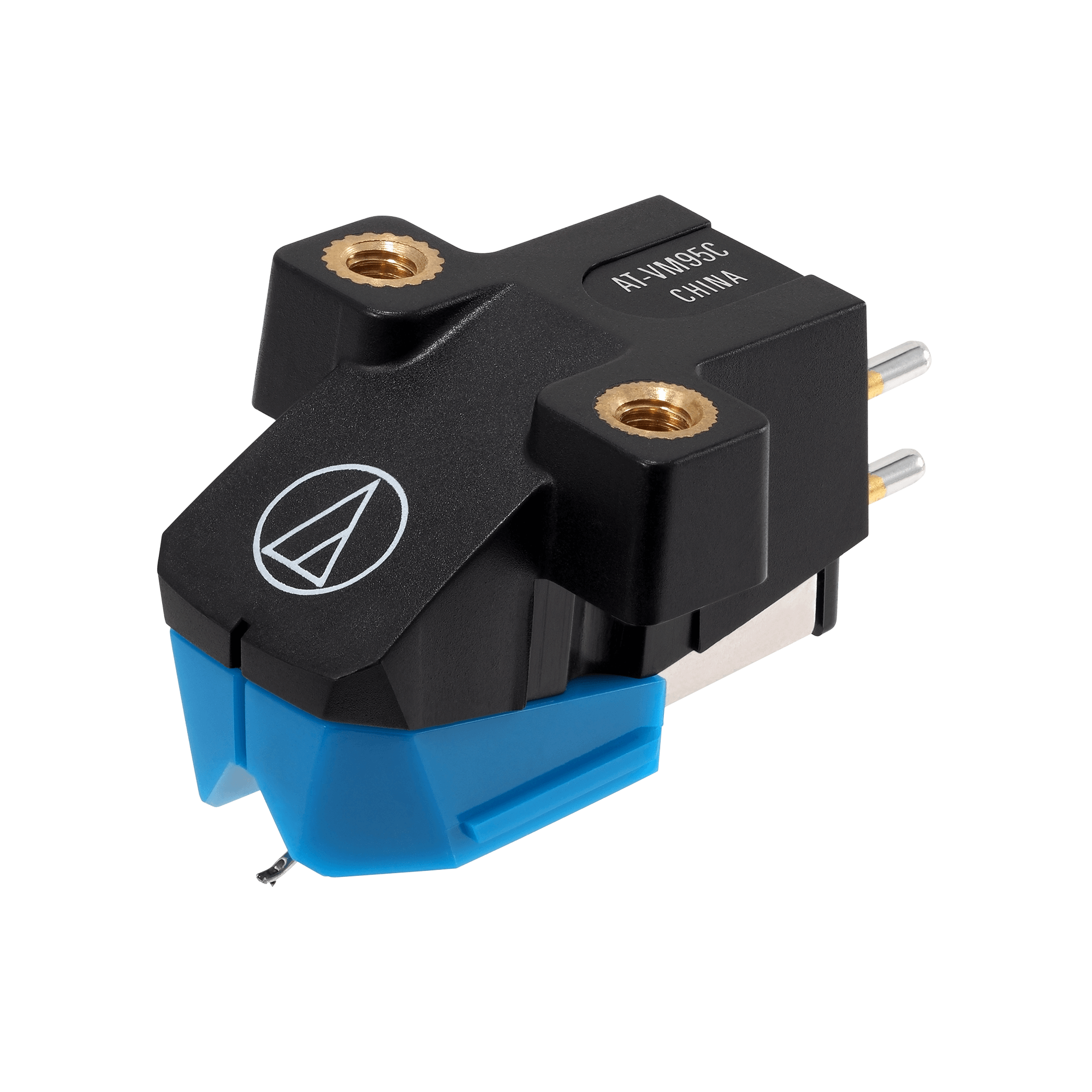

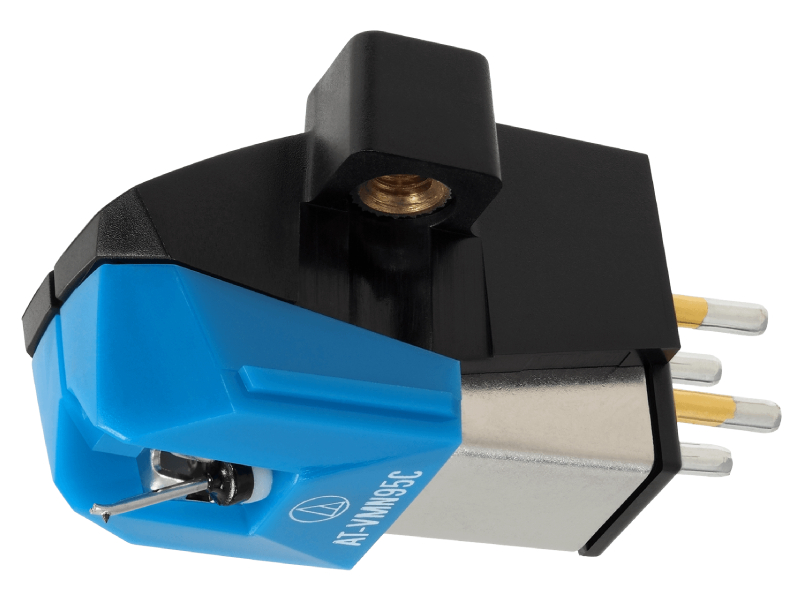

Audio Technica Dual Moving Magnet Cartridge With 0.6 Mil Conical Stylus - AT-VM95C

SKU : AT-VM95C   Web ID : ATVM95C   UPC : 4961310146023

$ 49 00
OR
$ 8 17/mo
+ taxes/fees
With 6 month financing
Available Special Order Condition: New
Free Shipping

We now offer financing powered by Apply Now

  • Special buy available for quick shipping
  • Free Shipping
Free Shipping

This VM95 Series cartridge with 0.6 mil conical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Features

  • VM95 Series dual magnet cartridge with 0.6 mil conical stylus
  • Aluminum cantilever

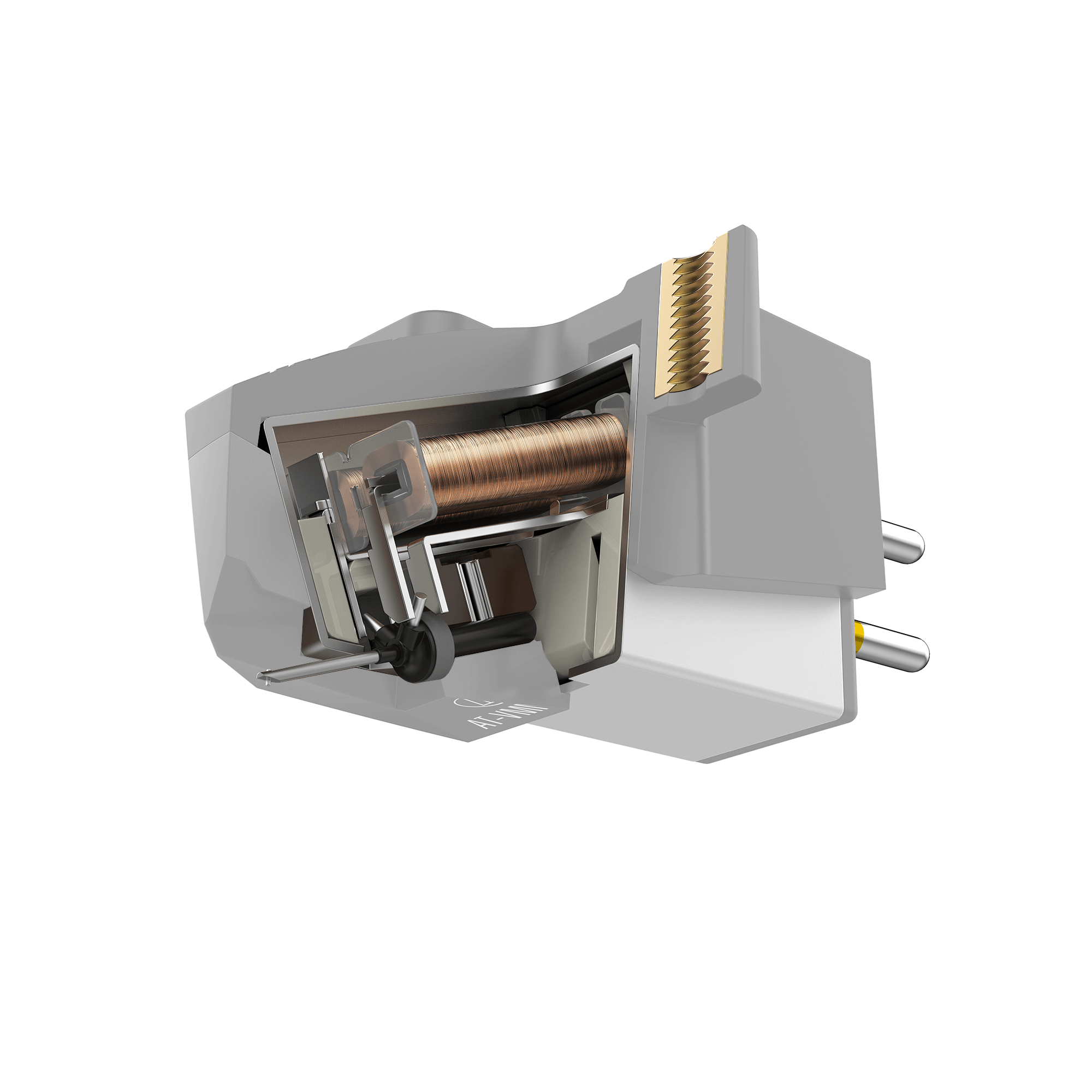

  • Specially wound coils increase output voltage
  • Durable low-resonance polymer housing
  • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
  • Compatible with any AT-VMN95 replacement stylus
SPECIFICATION RANGES
Frequency Response20-20,000 Hz
Channel Separation18 (dB at 1 kHz)
Vertical Tracking Angle23°
Vertical Tracking Force1.8-2.2 g (2.0 g standard)
Stylus ConstructionBonded round shank
Recommended Load Impedance47,000 ohms
Coil Impedance3.3 k ohms (1 kHz)
DC Resistance485 ohms
Coil Inductance550 mH (1 kHz)
Output Voltage 4.0 mV (1 kHz, 5 cm/sec.)
Output Channel Balance2.5 dB (1 kHz)

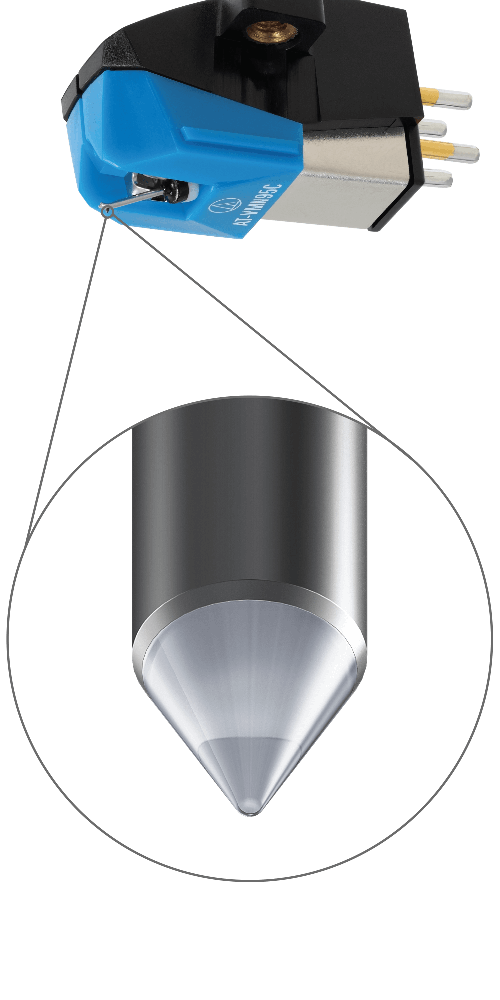

Stylus Shape0.6 mil conical
CantileverAluminum pipe
Static Compliance17 x 10 – 6 cm / dyne
Dynamic Compliance6.5 x 10 – 6 cm / dyne (100 Hz)
MountingHalf-inch
Cartridge Weight6.1g
Dimensions17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
Accessories IncludedTwo 11 mm installation screws, two 8 mm installation screws, two washers
ModelAT-VM95C
Mounting FeatureHalf-inch mount
Recommended Load Capacitance100 to 200 pF
Replacement StylusAT-VMN95C
Stylus Size0.6 mil
TypeVM Stereo Dual Magnet
Weight6.1 g (0.22 oz)
Wire Used for CoilT.P. Copper
