Alpine R-Series 6-Channel Power Amplifier With Staggered Power - R-A90S

SKU : R-A90S   Web ID : RA90S   UPC : 793276242952

$ 899 00
OR
$ 149 83/mo
+ taxes/fees
With 6 month financing
Guaranteed lowest price until 2025*
Available Special Order Condition: New
Free Shipping

We now offer financing powered by Apply Now

  • Guaranteed lowest price until 2025*
  • Special buy taking orders now
  • Free Shipping
Free Shipping
Literature

The loud and fun amplifier

Overview

Experience your music in Hi-Res with the versatile R-A90S 6-Channel Amplifier for hair-raising details that puts you in the center of the performance.

Features

  • 6-Channel Amp with 5-Channel Power –With double the power on the last two channels, the R-A90S’s 5th and 6th channels can be bridged to provide up to 500-watts at 4Ω to a subwoofer system such as a pair of S-SB12Vs.
  • An Amp that Grows with You –When you’re ready to upgrade your Alpine system, use the R-A90S to amplify a 3-way active system with enough mid-bass power to create the up-front bass impact you crave.
  • Accurate Sound Reproduction – With incredibly low phase shift and hi-resolution frequency response, the R-A90S can reproduce sound with incredible accuracy that stays true to the artist’s intention.

TECH SPECS

  • Dimensions: 12.75" x 10.75" x 2"
  • Hi-Resolution Audio Compliant (40k Hz)
  • Alpine’s Class D Amplifier Circuit
  • 75W x 4 + 150W x 2 (4Ω, 14.4V, < 1% THD +N)
  • 100W x 4 + 250W x 2 (2Ω, 14.4V, < 1% THD +N)
  • Bridged: 200W x 2 + 500W x 1 (4Ω, 14.4V, < 1% THD +N)
  • S/N > 85dB (ref. 1W into 4Ω)
  • THD + N < 0.03% (ref. 10W into 4Ω)
  • Frequency response: 10-45kHz (0/-3dB)
  • Damping factor > 500
  • CTA-2006

6-CHANNEL AMP WITH 5-CHANNEL POWER

The R-A90S has a unique staggered power channel layout that has double the power on the last two channels. When looking to power a dual subwoofer configuration, the R-A90S’s 5th and 6th channels can be bridged to provide up to 500-watts at 4Ω. The R-A90S is matched in power and performance for the Dual 10-inch Alpine Halo S-Series Preloaded Subwoofer Enclosures with ProLink™



AN AMP THE GROWS WITH YOU

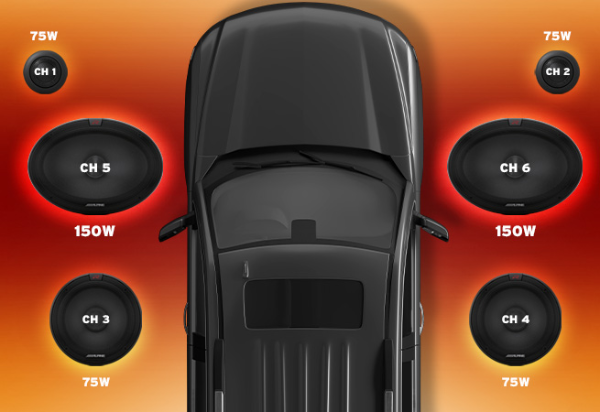

Thanks to the unique staggered power channel layout, the R-A90S can host different levels of power on each channel, compared to traditional, multi-channel amplifiers. This allows the R-A90S to grow with you as it can effectively function as both a 3-way active amplifier and a 5-channel amplifier by delivering the power you need to the channels where you need it the most.



ACCURATE SOUND REPRODUCTION

Hear the subtle deatails you've been missing in your music.The R-A90S maintains an extremely low phase shift throughout the music spectrum,which minimizes audible imperfections in your music and allows your music to stay faithful to the original recording.with a hi-resolution frequency response,the R-A90S can reproduce sound with incredible accuracy that stays true to the artist’s intention.

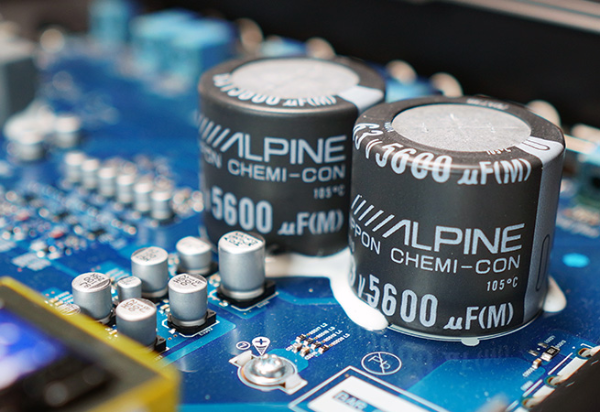

ALPINE EXCLUSIVE TECHNOLOGY

Using custom Alpine internal components orginally launched in Alpine's premium X-Series amplifier,the R-A90S has dual post-filter feedback loops that correct signal distortion by making the output as close as possible to the original input for accurate sound reproduction.

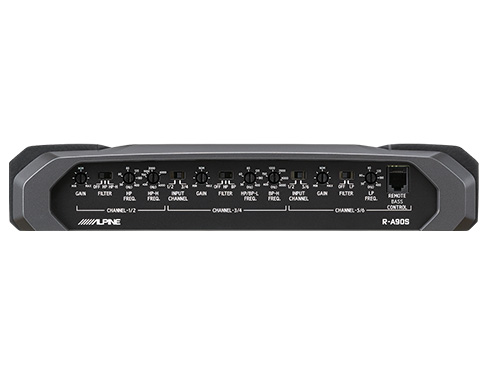

NEXT-LEVEL SYSTEM BUILDS

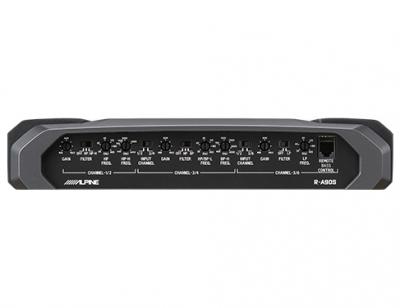

For the best possible sound experience, use the built-in bandpass,high pass, or low pass filter to individually power each component in your sound system and assign frequency bands for accurate and reliable sound reproduction

REMOTE BASS KNOB-READY

The R-A90S has input capability to add an optional RUX-KNOB.2 Remote Bass Control Knob (sold separately). The remote bass knob controls the bass in your subwoofer by adjusting the gain on your amplifier for quick bass adjustments when needed.

OPTIMIZED FOR ALPINE'S R-SERIES SOUND SYSTEM

Alpine's R-Series line of speakers, subwoofers, and amplifiers have a heritage of sound quality that can be heard from a block away. The R-A90S is tuned to emphasize the characteristics of the R-Series speakers and subwoofers for a legendary R-Series experience.
