Audio Technica Headshell Cartridge Combo Kit - ATVM95MLH

SKU : ATVM95MLH   Web ID : ATVM95MLH

$ 299 00
OR
$ 49 83/mo
+ taxes/fees
With 6 month financing
Available Special Order Condition: New
Free Shipping

We now offer financing powered by Apply Now

  • Special buy stock available July 28
  • Free Shipping
Free Shipping

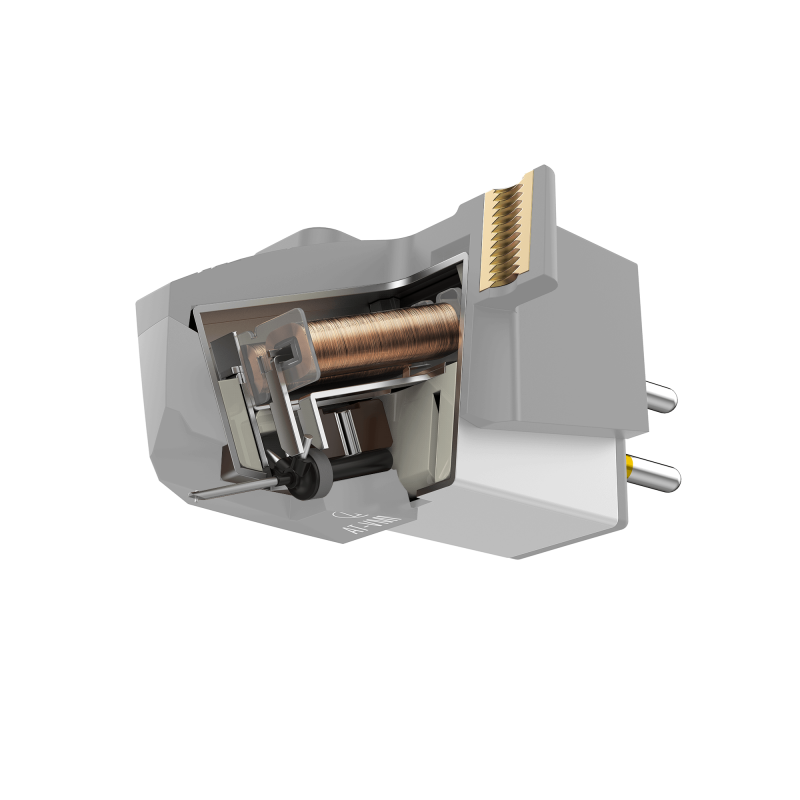

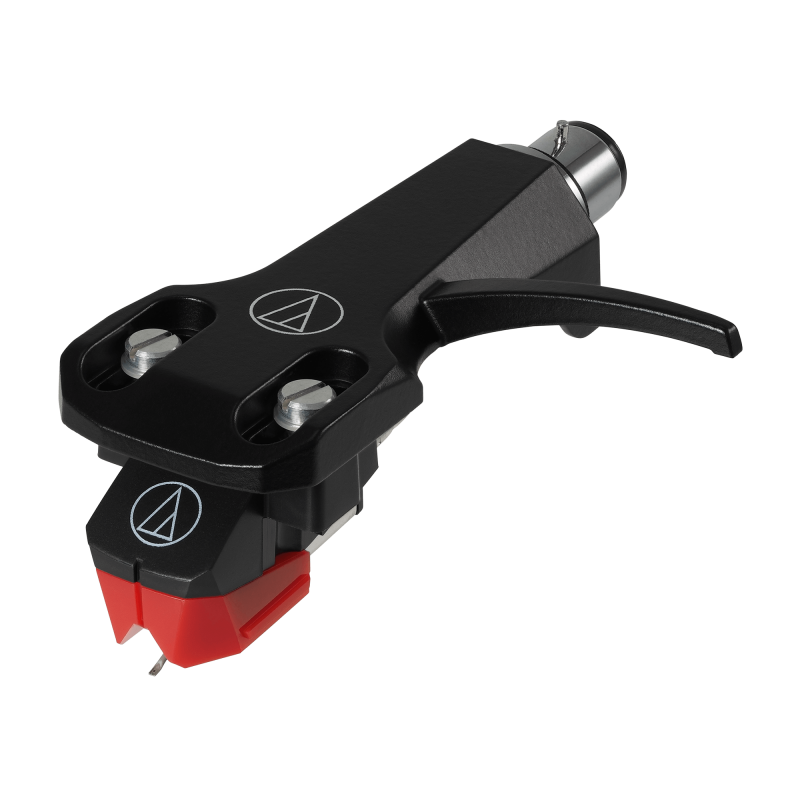

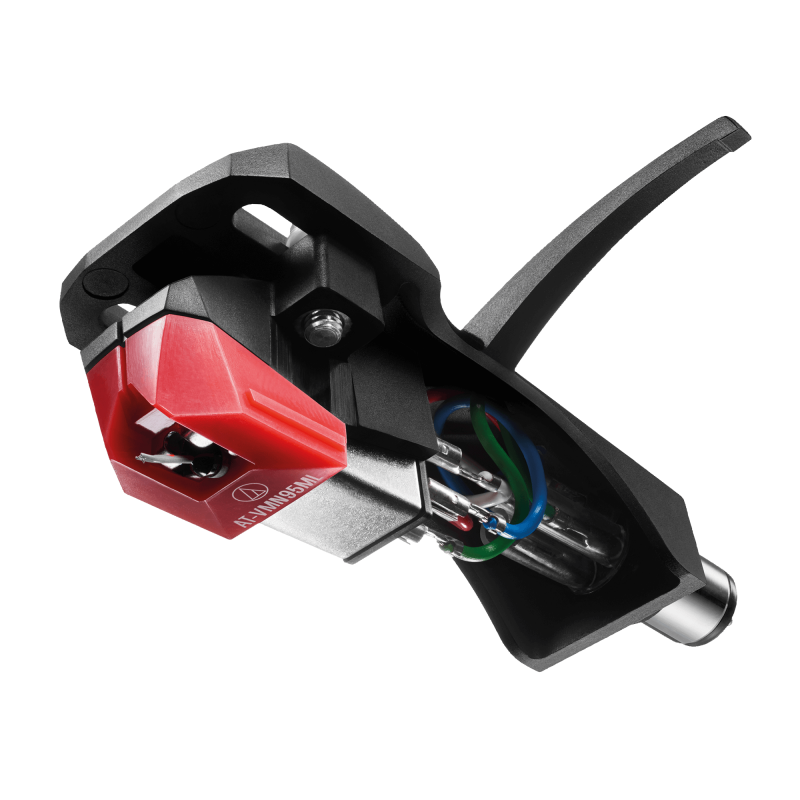

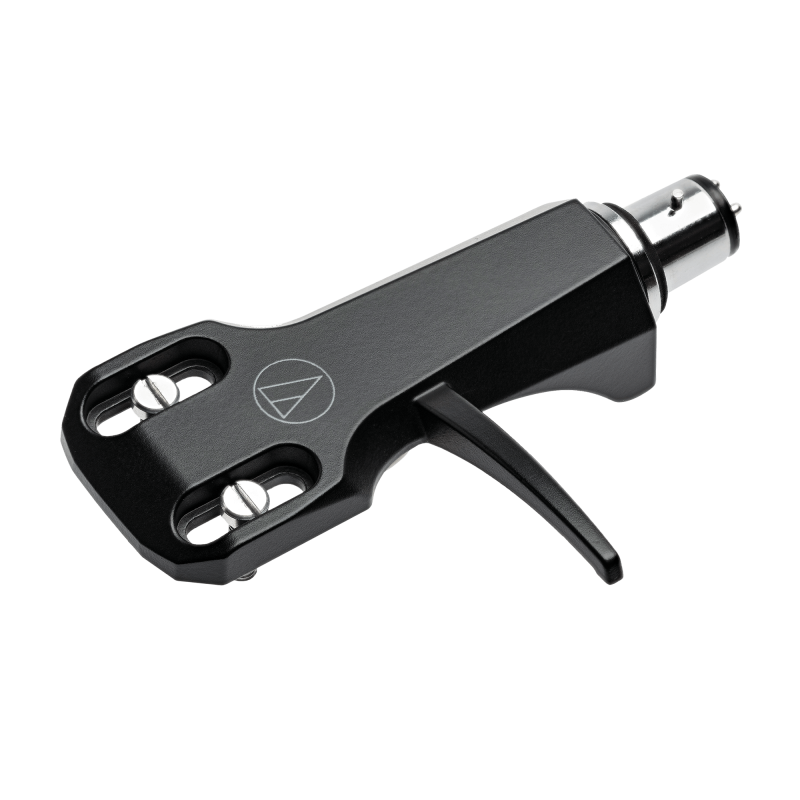

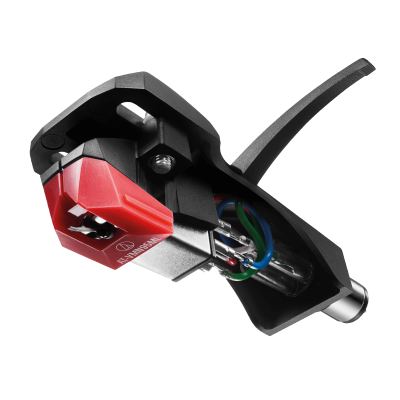

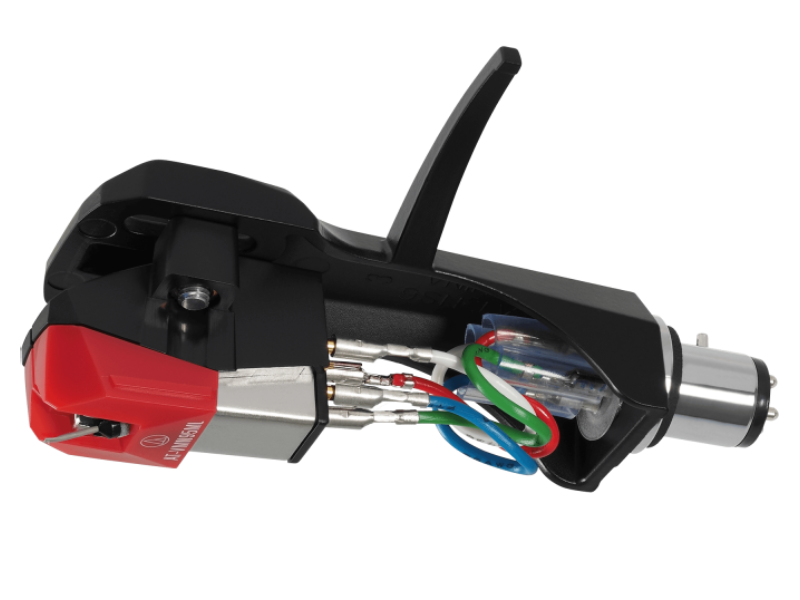

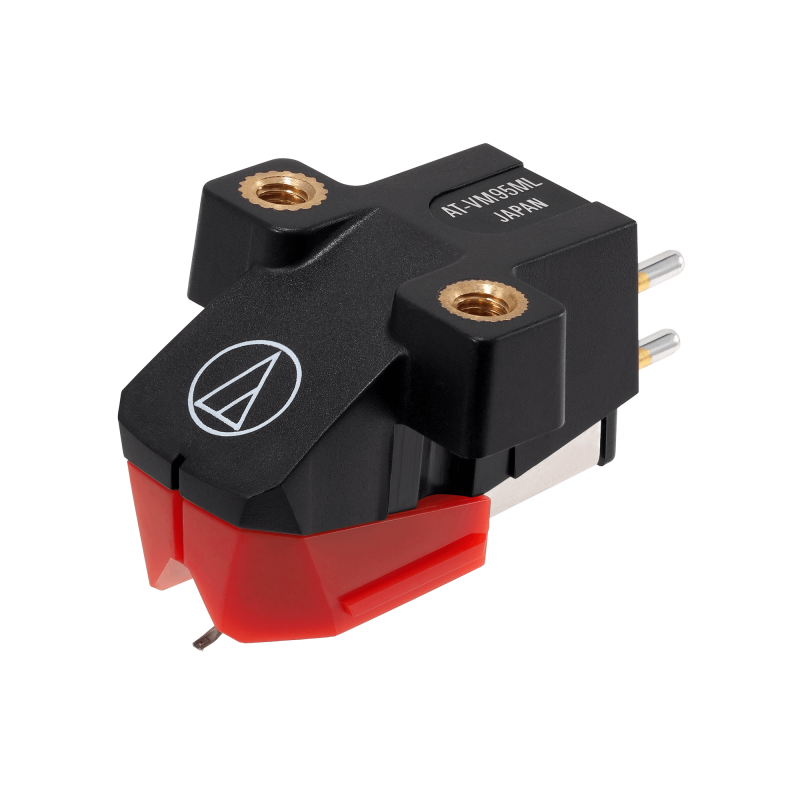

The AT-VM95ML/H combo kit includes the AT-VM95ML dual moving magnet cartridge premounted on the AT-HS6BK headshell.



Features

  • VM dual magnet cartridge with 2.2 x 0.12 mil Microlinear stylus
  • Aluminum cantilever
  • Specially wound coils increase output voltage
  • Durable low-resonance polymer housing
  • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
  • Compatible with any AT-VMN95 replacement stylus
  • Universal
Cartridge amp Stylus
Frequency Response20-25,000 Hz
Channel Separation23 (dB at 1 kHz)
Vertical Tracking Angle23
Vertical Tracking Force1.8-2.2 g (2.0 g standard)
Stylus ConstructionNude square shank
Recommended Load Impedance47,000 ohms
Coil Impedance3.3 k ohms (1 kHz)
DC Resistance485 ohms
Coil Inductance550 mH (1 kHz)
Output Voltage3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance1.5 dB (1 kHz)
Stylus Shape2.2 x 0.12 mil Microlinear
CantileverAluminum pipe
Static Compliance20 x 10 – 6 cm / dyne
Dynamic Compliance10 x 10 – 6 cm / dyne (100 Hz)
MountingHalf-inch
DimensionsCartridge 17.2 mm (0.68) H × 18.9 mm (0.74) W × 28.3 mm (1.20) D; Cartridge & Headshell 21.2 mm (0.83) H × 21.4 mm (0.84) W × 62.4 mm (2.46) D
Accessories IncludedTwo 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
ModelAT-VM95ML/H
Mounting FeatureHalf-inch mount
Recommended Load Capacitance100 to 200 pF
Replacement StylusAT-VMN95ML
Stylus Size2.2 x 0.12 mil
TypeVM Stereo Dual Magnet
WeightCartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz)
Wire Used for CoilT.P. Copper
