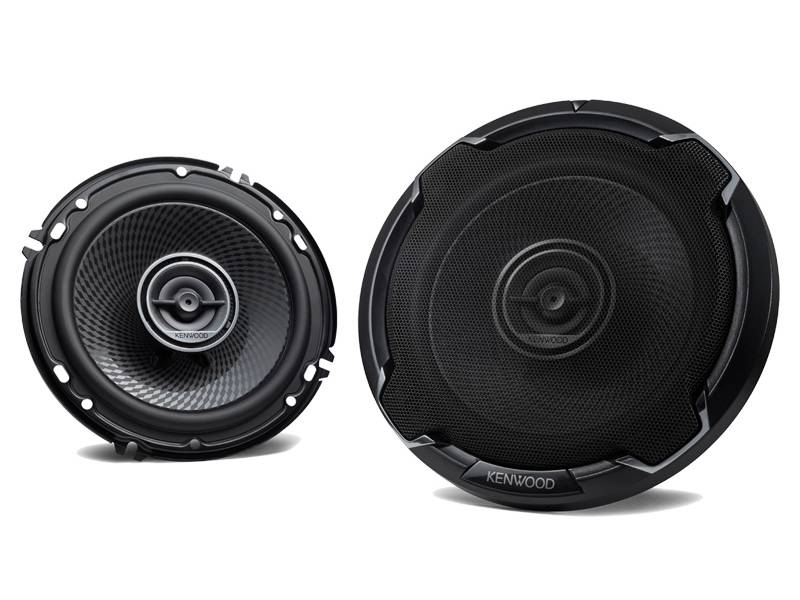

Kenwood 6.5 Inch Round 2-way Speakers - KFC-1696PS

SKU : KFC-1696PS   Web ID : KFC1696PS   UPC : 019048226778

$ 97 98
WAS $12799
OR
$ 16 33/mo
+ taxes/fees
With 6 month financing
Available Condition: New
Free Shipping

We now offer financing powered by Apply Now

  • SAVE $30
  • Free Shipping
Free Shipping
  • Peak Power 320W
  • Diamond Array Pattern Woofer Cone
  • Acoustic Sound Harmonizer
  • Sound Field Enhancer

Diamond Array Pattern Woofer Cone

This technology enhances sound and reduces distortion.

Sound Field Enhancer

This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.

Acoustic Sound Harmonizer

Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

Factory Location Fit

The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.

1. Black Painted Yoke and Plate

By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.

2. New Woofer Damper Shape

Stress leveling points increase durability and provide a smoother sound response.

New Frame Design

Enlarged open area provides more bass and cleaner sound.

ELECTRICAL
Impedance(Ω)
Peak Input Power(W)320W
RMS Input Power(W) CTA standards100W
Sensitivity (dB at 1m) CTA standards88dB
Frequency Response(Hz) CTA standards75-24000Hz
Woofer
Diaphragm / Color PP Cone Black
Size 160mm 6-1/2 inch
Surround Rubber
Basket Steel
MagnetFerrite φ85xt12
Tweeter
Diaphragm / Color Balanced Dome Matte Black
Size30mm 1-3/16 inch
MagnetNeodynium
Dimension
Width (w_Gr) 170 mm 6-11/16 in.
Width (w/o_Gr)157.7 mm 6-3/16 in.
Height (w_Gr)170 mm 6-11/16 in.
Height (w/o_Gr)157.7 mm 6-3/16 in.
Top Height 9 mm 3/8 in.
Cutout Diameter123.6 mm 4-7/8 in.
Mounting Depth 48 mm 1-7/8 in.
Weight
with Grille (pc.) 823g 1.8 lb
without Grille (pc.)748 g 1.6 lb
Weight of Woofer Magnet 270 g 9.5 oz
Net Weight1.60 ㎏ 3.6 lb
Accessory
Tapping Screw φ4x25*8pcs
Speed Nut 8pcs
Speaker Cord 0.5m*2
Adhesive Tape 1set
Grille Assy 2pcs
LocationStock
Brampton (Trinity Commons)Yes
KitchenerYes
MississaugaYes
NewmarketYes
ScarboroughYes
Toronto LeasideYes
WhitbyYes
WoodbridgeYes
